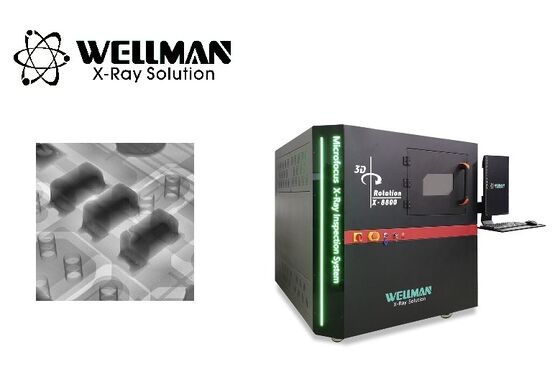

| Brand Name: | WELLMAN |
| Model Number: | X8800 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Type | Open, microfocus |
|---|---|
| Max Tube Voltage | 160kV |
| Max Tube Current | 500μA |
| Target Power | 15W |
| Tube Power | 65W |
| Focal Spot Size | 1μm |
| Effective Area | 130mm*130mm |
|---|---|
| Pixel Size | 49.5μm |
| Resolution | 1536*1536 |
| Frame Rate | 20fps |
| Tiltable Angle | 60° |
| Rotation Angle | 360° |
| Max Load | 10kg |
|---|---|
| Size | 400mm*400mm |
| Detectable Area | 400mm*400mm |
| Geometry Magnification | 2500X |
|---|---|
| Inspection Speed | Max 3.0s/point |
| Dimensions | 1550mm (L) * 1600mm (W) * 1700mm (H) |
| Weight | 1800kg |
| Power Supply | AC110-220V 50/60HZ |
| Max Power | 1800W |
| Industrial PC | I7 CPU, 16G RAM, 240GB SSD+1TB HDD |
| Display | 24" HDMI LCD |
| Radiation Leakage | No leakage |
|---|---|
| Lead Glass Observation Window | Transparent lead glass window shields radiation to observe internal status |
| Window and Back Door Safety Interlock | X-ray tube powers off immediately when window or door is opened |
| Electromagnetic Safety Switch | Locks when X-ray is on, preventing window access |
| Emergency Stop | Located next to operation position for immediate power cutoff |
| Tube Protection | Software prevents leaving without closing X-ray tube |
| Operation Method | Keyboard and mouse complete all operations |
|---|---|
| X-ray Tube Control | Mouse-click activation with real-time voltage/current display and adjustment |
| Status Bar | Displays interlock, pre-heat, and X-ray status with red/green indicators |
| Image Effect Adjustment | Brightness, contrast and gain adjustable for optimal results |
| Product List | Save and recall inspection parameters for efficiency |
| Navigation Window | Click-to-move table positioning with camera guidance |
| Motion Axis Status | Real-time coordinate display |
| Inspection Results | Display measurement results including voids rate, distance, area with NG/OK indicators |
| Speed Control | Adjustable movement speed for each axis (slow, normal, fast) |
| Automatic Calculation | Rectangle-based solder ball edge detection with voids measurement |
|---|---|
| Parameters Adjustment | Adjust grayscale threshold, pixel, contrast, and size filtering parameters |
| Manual Void Addition | Draw polygons or free figures to calculate as voids |
| Parameter Saving | Save and recall measurement parameters for consistent product inspection |
| Distance | Measure vertical distance from point to baseline |
|---|---|
| Distance Rate | Calculate percentage ratio for through-hole soldering rate measurement |
| Angle | Measure angle between rays |
| Radius | Three-point circle determination for round component measurement |
| Perimeter | Square component measurement for length, width and area |
| Manual Setting | Set custom inspection points with automatic inspection and image saving |
|---|---|
| Array | Automatic inspection of regular grid patterns with row/column specification |
| Automatic Identification | Feature-based automatic position identification and measurement |
