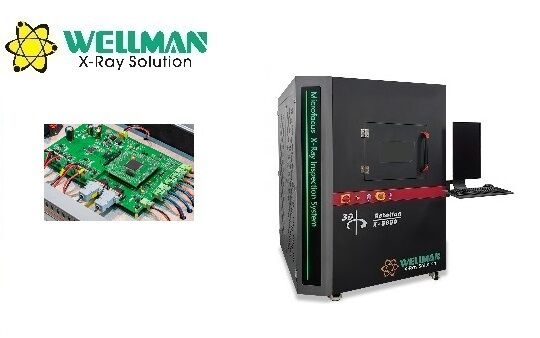

Open type X-ray tube with unlimited service life, requiring only filament replacement
New generation 5" HD digital flat panel detector (FPD)
FPD tilts 60° and rotates 360° for optimal positioning
Automatic navigation window - table moves to clicked positions
400*400mm table with 10KG load capacity
Speed adjustable 5-axis linkage system
Optional ACT and PCT 3D CT functions
Easy operation with quick defect identification - only 2 hours training required

Working Principle

X8800 Semiconductor Inspection Equipment working principle diagram

Hardware Parameters

Safety
Radiation Leakage	No leakage, international standard: ≤1μSv/h
Lead Glass Observation Window	Transparent lead glass window shields radiation to observe inner status
Window and Back Door Safety Interlock	X-ray tube powers off immediately when window or back door opens
Electromagnetic Safety Switch	Locks when X-ray is on, preventing window opening
Emergency Stop	Located next to operation position, press to power off
Tube Protection	Software prevents leaving without closing X-ray tube

Software Function

Function Module	Operation
X-ray Tube Control	Mouse-click X button to turn on/off X-ray. Real-time tube voltage and current display with adjustment via buttons, slider, or typing
Status Bar	Indicates interlock status, pre-heat status, and X-ray status with alternating red/green flashing
Image Effect Adjustment	Adjust brightness, contrast and gain freely for optimal results
Product List	Save inspection parameters (Z-axis position, brightness, contrast, gain) for efficient reuse
Navigation Window	Click anywhere in table photo to move table to selected position
Motion Axis Status	Display real-time coordinates
Inspection Result	Display measurement results (voids rate, distance, area, etc.) in order with NG/OK indication
Speed Control	Adjust movement speed of each axis to slow, normal, or fast
Voids Rate Measurement	Automatic calculation of solder ball edges, pads, and internal voids with comprehensive data output
Parameters Adjustment	Adjust grayscale threshold, pixel, contrast, size filtering for accurate results
Add Voids Manually	Draw polygons or free figures to calculate as voids
Save Parameters	Store measurement parameters for efficient reuse on similar products
Other Measurement Functions	Distance, distance rate, angle, radius, perimeter measurements for various component types
Automatic Inspection	Manual setting, array configuration, and automatic identification of inspection points
