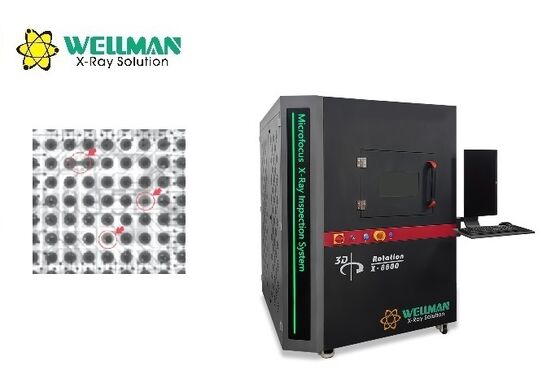

Advanced 3D X-ray inspection system designed for automated quality control in high-volume manufacturing environments, featuring a large 400mm×400mm inspection table and comprehensive safety features.

Key Advantages

Automatic navigation window - table moves to your click location
400×400mm table with 10kg load capacity
Customizable inspection procedures for automated inspection in large quantities
Easy to operate with only 2 hours of training required
Optional 360° rotation jig for multi-angle inspection capability

Working Principle

X8800 X-Ray Inspection Equipment Working Principle Diagram

Hardware Specifications

X-ray Source
Type	Open, microfocus
Max Tube Voltage	160kV
Max Tube Current	500μA
Target Power	15W
Tube Power	65W
Focal Spot Size	1μm
Flat Panel Detector
Effective Area	130mm×130mm
Pixel Size	49.5μm
Resolution	1536×1536
Frame Rate	20fps
Tiltable Angle	60°
Rotation Angle	360°
Table
Size	400mm×400mm
Detectable Area	400mm×400mm
Max Load	10kg
Equipment
Geometry Magnification	2500X
Inspection Speed	Max 3.0s/point
Dimensions	1550mm (L) × 1600mm (W) × 1700mm (H)
Weight	1800kg
Power Supply	AC110-220V 50/60HZ
Max Power	1800W
Industrial PC	I7 CPU, 16G RAM, 240GB SSD+1TB HDD
Displayer	24" HDMI LCD
Safety Features
Radiation Leakage	No leakage, international standard: ≤1μSv/h
Lead Glass Observation Window	Transparent lead glass window shields radiation while allowing internal observation
Window and Back Door Safety Interlock	X-ray tube powers off immediately when window or back door is opened
Electromagnetic Safety Switch	Locks when X-ray is active, preventing window access
Emergency Stop	Located near operation position for immediate power cutoff
Tube Protection	Software prevents leaving without proper X-ray tube shutdown

Software Capabilities

Function Module	Operation
X-ray Tube Control	Mouse-click operation for power control with real-time voltage/current display and adjustment
Status Bar	Visual indication of interlock status, pre-heat status, and X-ray status
Image Effect Adjustment	Adjustable brightness, contrast and gain for optimal image quality
Product List	Save and recall inspection parameters for improved efficiency
Navigation Window	Click-to-move functionality for precise table positioning
Motion Axis Status	Real-time coordinate display
Inspection Result	Organized display of measurement results including voids rate, distance, area
Speed Control	Adjustable movement speed for each axis (slow, normal, fast)
Voids Rate Measurement	Automatic calculation of solder ball voids, area, circumference with NG/OK indication
Other Measurement Functions	Distance, distance rate, angle, radius, perimeter measurements for comprehensive analysis
Automatic Inspection	Manual setting, array configuration, and automatic identification of inspection points
