Radiation leakage	No leakage, international standard: ≤1μSv/h
Lead glass observation window	Transparent lead glass window shields radiation to observe inner status
Window and back door safety interlock	X-ray tube powers off immediately when window or back door is opened
Electromagnetic safety switch	Locks when X-ray is on, preventing observation window opening
Emergency stop	Located next to operation position, press to power off
Tube protection	Software prevents user from leaving without closing X-ray tube

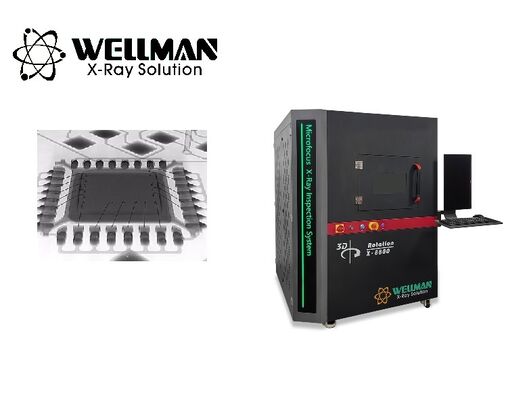

Equipment Specifications

Working Principle

X-ray Inspection Working Principle

Software Functions

Function Module	Description
Operation	Keyboard and mouse can finish all operations
X-ray tube control	Mouse-click X button to turn on/off X-ray. Real-time voltage and current display with adjustable controls
Status bar	Indicates interlock status, pre-heat status, and X-ray status by flashing alternately red and green
Image effect adjustment	Brightness, contrast and gain adjustable for optimal image quality
Product list	Save inspection parameters for efficient recall when inspecting same products
Navigation window	Click anywhere in table photo to move table to selected position
Motion axis status	Display real-time coordinates
Inspection result	Measurement results (voids rate, distance, area, etc.) display in order
Speed control	Movement speed of each axis adjustable to slow, normal and fast

Voids Rate Measurement

Automatic calculation: Click two points to define rectangle for automatic solder ball edge detection and voids measurement
Parameters adjustment: Adjust grayscale threshold, pixel, contrast, size filtering for accurate results
Add voids manually: Draw polygon or free figure to calculate as void into void rate
Save parameters: Save measurement parameters for efficient recall on same products

Other Measurement Functions

Distance: Measure vertical distance from point to baseline
Distance rate: Calculate percentage ratio for through-hole soldering rate measurement
Angle: Measure angle between rays
Radius: Measure round components circumference, area and radius
Perimeter: Measure square components length, width and area

Automatic Inspection

Manual setting: Set any positions as inspection points for automatic inspection and image saving
Array: Automatic inspection of regular points using row and column configuration
Automatic identification: Software automatically identifies positions with obvious features for measurement

Application Examples
