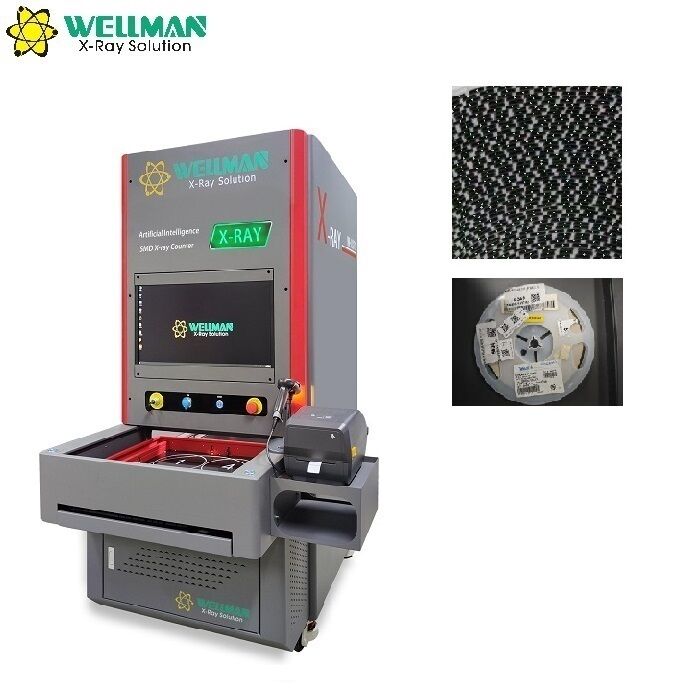

Wellman Microfocus X Ray SMD Counter XC-01

The Wellman Microfocus X Ray Component Counter XC-01 comes equipped with a 17" Super Definition Flat Panel Detector (FPD), delivers 99.98% counting accuracy, and is engineered for seamless integration with MES ERP and WMS systems.

• 80kV Sealed X-ray Tube: Extended lifespan and maintenance-free operation
• Large Capacity Compatibility: Supports reels/trays up to 17" (430mm) including moisture barrier bags
• Blazing-fast Counting Speed: Processes four 7" reels or one 15" (380mm) reel in under 10 seconds
• Intelligent Mode Operation: Eliminates single/multi-reel mode switching
• Advanced Tracking: Work order management with counting record query and statistics
• AI Deep Learning Algorithm: Free permanent updates and MES ERP WMS system compatibility
• Automated Operation: Simultaneous code scanning, counting and label printing supported
• 17" Super Definition Digital FPD: High-resolution imaging for accurate component counting

Our counting software utilizes powerful artificial intelligence that automatically identifies components without manual algorithm binding. The system learns from counted component data including:

• Slope analysis between components
• Component corner angle measurement
• Image deformation tracking
• Aspect ratio analysis

Counting accuracy keeps advancing as the system processes more components, with the technology easily adapting to similar components or larger trays.

Every X-ray counter connects to our cloud database for:

• Regular database updates for all customers
• Continuous algorithm optimization by engineers
• Automatic data and image uploads

Over time, the system's counting accuracy draws closer to 100% while its component type coverage continues to expand; when new components are encountered, the system utilizes existing database knowledge for immediate high-efficiency processing.
