| Brand Name: | WELLMAN |
| Model Number: | X6800 |
| MOQ: | 1 |
| Payment Terms: | T/T |

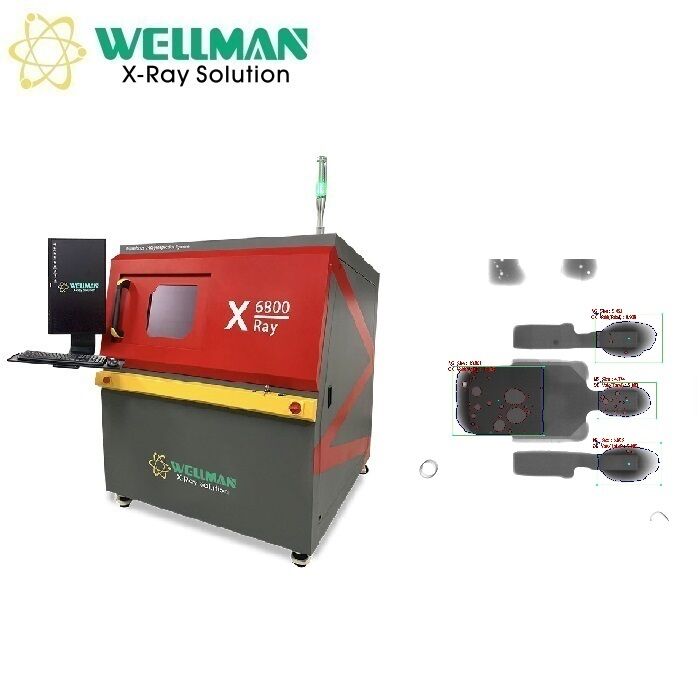

Microfocus X-Ray Inspection System X6800
| Component | Parameter | Specification |
|---|---|---|
| X-ray source | Type | Closed, microfocus |
| Max tube voltage | 90kV | |
| Max tube current | 200μA | |
| Focal spot size | 5μm | |
| Function | Auto preheat | |
| Flat panel detector | Effective area | 130mm×130mm |
| Pixel size | 85μm | |
| Resolution | 1536×1536 | |
| Frame rate | 20fps | |
| Tiltable angle | 60° | |
| Table | Size | 530mm×530mm |
| Detectable area | 500mm×500mm | |
| Max load | 10kg | |
| Equipment | Magnification | Geometry 200X | System 1500X |
| Inspection speed | Max 3.0s/point | |
| Dimensions | 1360mm (L)×1365mm (W)×1730mm(H) | |
| Weight | 1200kg | |
| Power supply | AC110-220V 50/60HZ | |
| Max power | 1500W | |
| Industrial PC | I5 CPU, 8G RAM, 500GB SSD | |
| Displayer | 24"HDMI LCD | |
| Safety | Radiation leakage | No leakage, international standard: ≤1μSv/h |
| Lead glass observation window | Transparent lead glass window shields radiation to observe the inner status | |
| Window and back door safety interlock | Once users open the window or back door, X-ray tube will power off immediately. When the window or back door is open, users can't turn on the X-ray | |
| Electromagnetic safety switch | Lock once the X-ray is on, users can't open the observation window | |
| Emergency stop | Next to the operation position, press to power off | |
| Tube protection | User can't leave the software if you don't close the X-ray tube |
| Function Module | Operation | Description |
|---|---|---|
| Operation | Keyboard and mouse | Can finish all operations |
| X-ray tube control | Mouse click | Click X button to turn on/off X-ray. Real-time tube voltage and current display. Adjust via buttons, slider, or typing |
| Status bar | Visual indicator | Indicates interlock status, pre-heat status, and X-ray status by flashing alternately red and green |
| Image effect adjustment | Adjustable parameters | Brightness, contrast and gain can be adjusted freely for optimal results |
| Product list | Save/recall parameters | Save inspection parameters (Z-axis position, brightness, contrast, gain) for same product inspection to improve efficiency |
| Navigation window | Click to move | Camera takes table photo, click anywhere to move table to selected position |
| Motion axis status | Real-time display | Display real-time coordinates |
| Inspection result | Measurement display | Measurement results (voids rate, distance, area, etc.) display in order |
| Speed control | Adjustable settings | Movement speed of each axis adjustable to slow, normal, and fast |
| Voids rate measurement | Automatic calculation | Click two points to determine rectangle. Software automatically finds and measures solder ball edge, pad, internal voids. Provides voids rate, area, circumference, max voids rate, length, width. Indicates NG/OK by red/green |
| Parameters adjustment | Adjustable settings | Adjust grayscale threshold, pixel, contrast, size filtering for accurate results |
| Add voids manually | Manual input | Draw polygon or free figure to calculate as void into void rate |
| Save parameters | Save/recall settings | Save parameters (grayscale threshold, pixel, contrast, size filtering) for same product detection to improve efficiency |
| Other measurement functions | Distance | Click A and B points for baseline, click C point to measure vertical distance from C to baseline |
| Distance rate | Used for through-hole soldering rate measurement. Set point D, divide vertical distance from D to baseline by vertical distance of C point for percentage ratio | |
| Angle | Click A and B points for baseline, click C point to measure angle between BA and BC rays | |
| Radius | Used for round components like solder balls. Click three points to determine circle, measure circumference, area and radius | |
| Perimeter | Used for square components. Click two points to determine square, measure length, width and area |
