5 Axis Linkage X Ray Detection System Fast Batch Inspection Semiconductor

Brand Name:	WELLMAN
Model Number:	X6000
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE, FDA

X-ray Type:

Closed, Microfocus

Max Tube Voltage:

Max Tube Current:

200μA

Focal Spot Size:

Effective Area:

130mm*130mm

Packaging Details:

Wooden case

Highlight:

5 axis X ray detection system

semiconductor batch inspection machine

fast X ray inspection system

Product Description

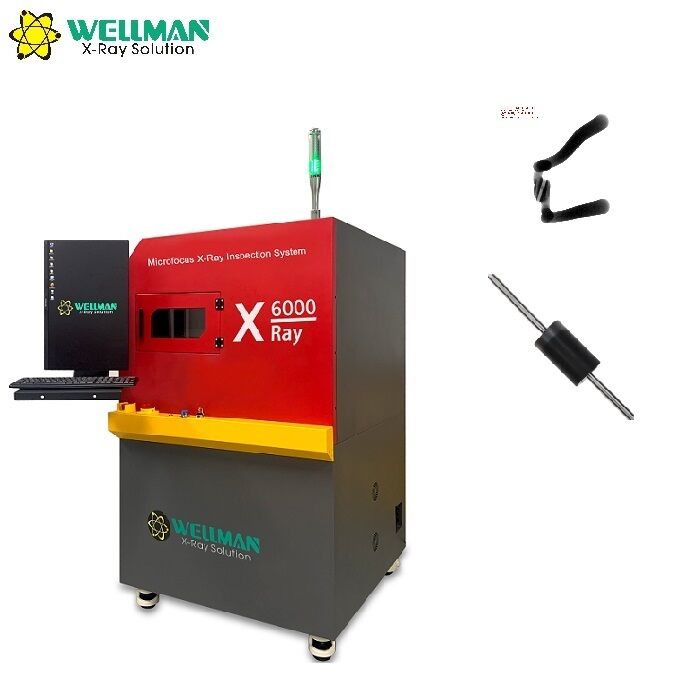

5 Axis Linkage X-Ray Detection System for Fast Batch Semiconductor Inspection

Microfocus X-Ray Inspection System X6000

Maintenance-free X-ray tube system supports efficient inspection of BGA solder voids and PCB through-holes, combined with high-precision imaging.

Key Advantages

Next-generation 5-inch HD digital flat panel detector (FPD)
420×420mm worktable with up to 15KG load capacity
Easy-to-use operation with only 2 hours of training needed
Closed X-ray tube with 10,000+ hours service life and maintenance-free operation
Auto-navigation window - the table moves to the position you click
Optional 360° rotary jig for multi-angle inspection
3-axis linkage system with adjustable movement speed
Programmable inspection processes for automated batch inspection

Technical Specifications

X-ray Source

Type	Closed, microfocus
Max tube voltage	90kV
Max tube current	200μA
Focal spot size	5μm
Function	Auto preheat

Flat Panel Detector

Effective area	130mm×130mm
Pixel size	85μm
Resolution	1536×1536
Frame rate	20fps

Work Table

Size	420mm×420mm
Detectable area	400mm×400mm
Max load	15kg

Equipment Parameters

Magnification	Geometry 150X \| System 1500X
Inspection speed	Max 3.0s/point
Dimensions	1100mm (L) × 1000mm (W) × 1600mm (H)
Weight	1000kg
Power supply	AC110-220V 50/60HZ
Max power	1300W
Industrial PC	Intel I5 CPU, 8G RAM, 240GB SSD
Displayer	24" HDMI LCD

Safety Features

Radiation leakage	No leakage (≤1μSv/h, international standard)
Lead glass observation window	Transparent lead glass shields radiation while allowing internal observation
Window/door safety interlock	X-ray automatically powers off when window/door is opened
Electromagnetic safety switch	Locks observation window when X-ray is active
Emergency stop	Instant power-off button near operation position
Tube protection	Software prevents X-ray tube from being left on

Software Capabilities

Basic Operation

Full keyboard and mouse control for all functions, including X-ray tube activation and parameter adjustment.

Measurement Tools

Comprehensive measurement functions including distance, angle, radius, perimeter, and distance rate calculations are ideal for through-hole soldering analysis.

Automated Inspection

Three operation modes are available: manual point setup, array mode for regular positions, and automatic feature recognition for efficient batch inspection.

Image Processing

Adjustable brightness, contrast, and gain to achieve optimal image quality. Save and retrieve inspection parameters for repeated inspections.

Voids Rate Measurement

Automatically calculates solder ball void rate, area, and circumference while identifying defects, and supports manual void marking and parameter saving for consistent results.

Application Examples

X6000 inspection application example 1 - PCB inspection

X6000 inspection application example 2 - Component analysis

Working Principle

X6000 X-ray inspection machine working principle diagram
