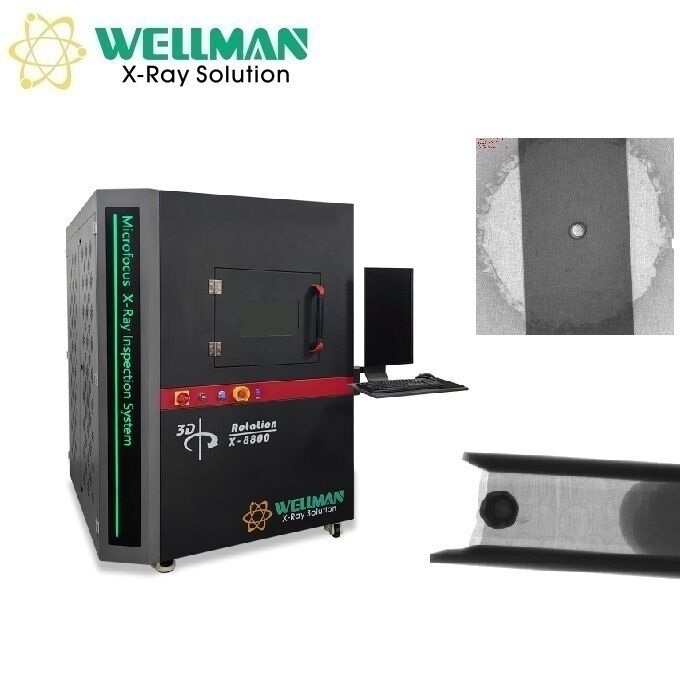

Microfocus X-Ray Inspection System X8800

Advanced BGA X-ray machine featuring durable Japan Hamamatsu X-ray tube for precision inspection applications.

Working Principle

System Advantages

Japan Hamamatsu X-ray tube - world's best closed type X-ray tube with over 10,000 hours lifetime, maintenance-free
New generation 5" HD digital flat panel detector (FPD)
FPD can tilt ±45° and rotate 360° for flexible inspection angles
Automatic navigation window - table moves to clicked positions
400×400mm table with 10KG load capacity
Speed adjustable 5-axis linkage system
Programmable inspection procedures for automated batch inspection
Easy operation with quick defect detection - only 2 hours training required

Hardware Specifications

X-ray Source
Brand	Japan Hamamatsu
Type	Closed, microfocus
Max tube voltage	90KV
Max tube current	200μA
Focal spot size	5μm
Function	Auto preheat
Flat Panel Detector
Effective area	130mm×130mm
Pixel size	85μm
Resolution	1536×1536
Frame rate	20fps
Tiltable angle	±45°
Rotation angle	360°
Table
Size	400mm×400mm
Detectable area	400mm×400mm
Max load	10kg
Equipment
Magnification	Geometry 200X	System 1500X
Inspection speed	Max 3.0s/point
Dimensions	1550mm(L)×1600mm(W)×1700mm(H)
Weight	1800kg
Power supply	AC110-220V 50/60HZ
Max power	1800W
Industrial PC	15 CPU, 8G RAM, 240GB SSD
Displayer	24" HDMI LCD
Safety Features
Radiation leakage	No leakage, international standard: ≤1μSv/h
Lead glass observation window	Transparent lead glass window shields radiation for internal status observation
Window and back door safety interlock	X-ray tube powers off immediately when window or back door is opened
Electromagnetic safety switch	Locks observation window when X-ray is active
Emergency stop	Located near operation position for immediate power cutoff
Tube protection	Software prevents leaving without closing X-ray tube

Software Capabilities

Operation & Control

Complete keyboard and mouse operation
X-ray tube control with real-time voltage and current display
Status bar indicating interlock, pre-heat, and X-ray status
Image effect adjustment for brightness, contrast, and gain
Product list for saving and recalling inspection parameters
Navigation window for automatic table positioning
Real-time motion axis status display
Inspection result organization and display
Adjustable movement speed control (slow, normal, fast)

Voids Rate Measurement

Automatic calculation of voids rate, distance, area, and other measurements
Parameter adjustment for grayscale threshold, pixel, contrast, and size filtering
Manual void addition via polygon or free figure drawing
Parameter saving and recall for consistent product inspection

Additional Measurement Functions

Distance measurement with baseline and point calculation
Distance rate measurement for through-hole soldering rate analysis
Angle measurement between defined rays
Radius measurement for circular components with circumference and area calculation
Perimeter measurement for square components with length, width, and area analysis

Automated Inspection
