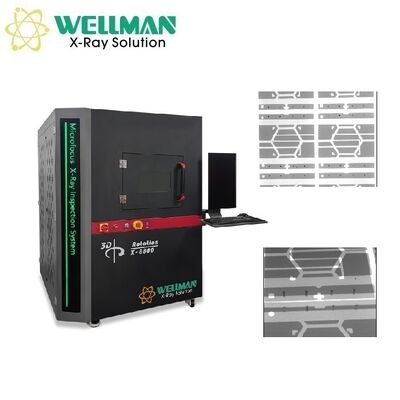

| Brand Name: | WELLMAN |
| Model Number: | X8800 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| X-ray Source | ||
|---|---|---|
| Brand | Japan Hamamatsu | |
| Type | Closed, microfocus | |
| Max Tube Voltage | 90KV | |
| Max Tube Current | 200μA | |
| Focal Spot Size | 5μm | |
| Function | Auto preheat | |
| Flat Panel Detector | ||
| Effective Area | 130mm×130mm | |
| Pixel Size | 85μm | |
| Resolution | 1536×1536 | |
| Frame Rate | 20fps | |
| Tiltable Angle | ±45° | |
| Rotation Angle | 360° | |
| Table | ||
| Size | 400mm×400mm | |
| Detectable Area | 400mm×400mm | |
| Max Load | 10kg | |
| Equipment | ||
| Magnification | Geometry 200X | System 1500X | |
| Inspection Speed | Max 3.0s/point | |
| Dimensions | 1550mm(L)×1600mm(W)×1700mm(H) | |
| Weight | 1800kg | |
| Power Supply | AC110-220V 50/60HZ | |
| Max Power | 1800W | |
| Industrial PC | 15 CPU, 8G RAM, 240GB SSD | |
| Displayer | 24" HDMI LCD | |
| Safety Features | ||
| Radiation Leakage | No leakage, international standard: ≤1μSv/h | |
| Lead Glass Observation Window | Transparent lead glass shields radiation for internal observation | |
| Window and Back Door Safety Interlock | X-ray tube powers off immediately when opened; prevents X-ray activation when open | |
| Electromagnetic Safety Switch | Locks observation window when X-ray is active | |
| Emergency Stop | Located near operation position for immediate power cutoff | |
| Tube Protection | Prevents software exit without closing X-ray tube | |
