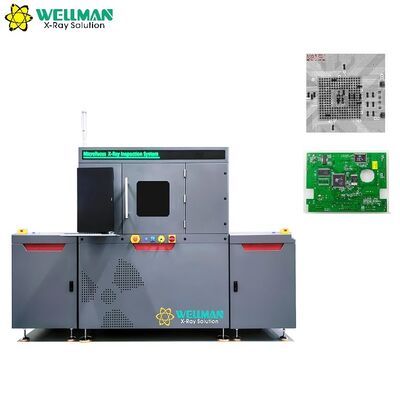

Inline XRay Inspection System Automatic BGA PCB Testing for SMT Production

Brand Name:	WELLMAN
Model Number:	IL-3000
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE, FDA

Type:

Microfocus

Max Tube Voltage:

Max Tube Current:

200μA

Focal Spot Size:

Detectable Area:

Length 520mm, Width 80-430mm Adjustable

Packaging Details:

Wooden case

Highlight:

automatic BGA X-ray inspection system

inline PCB X-ray testing

SMT production X-ray inspection

Product Description

Inline X-Ray Inspection System for Automatic BGA PCB Testing

Wellman In-line X-ray Inspection System IL-3000 with free tube automatic voids rate calculation for SMT production applications.

Key System Advantages

Closed type X-ray tube with over 10,000 hours lifetime, maintenance-free operation
New generation 5" HD digital flat panel detector (FPD) for high-resolution imaging
6-axis motion system with servo motor (X-ray tube and FPD move synchronously)
Customizable inspection programs enable automated high throughput inspection
User friendly operation supports fast defect detection with only 2 hours of training
Automatic navigation window moves the table to any clicked position
Belt transmission with adjustable width via lead screw and guide rail (maximum width 620mm)

Hardware Specifications

X-ray Source

Type	Closed, microfocus
Max tube voltage	90kV
Max tube current	200μA
Focal spot size	5μm
Function	Auto preheat

Flat Panel Detector

Brand	IRay
Effective area	130mm * 130mm
Pixel size	85μm
Resolution	1536 * 1536
Frame rate	20fps
Tiltable angle	60°

Inspection System

Transmission	Belt
Motor	Servo motor
Detectable area	Length 520mm, width 80-430mm adjustable
Max load	10kg

Equipment Specifications

Magnification	Geometry 200X \| System 1500X
Inspection speed	Max 3.0s/point
Dimensions	2600mm (L) * 1300mm (W) * 1800mm (H)
Host machine dimensions	1400mm (L) * 1300mm (W) * 1800mm (H)
Weight	2200kg
Power supply	AC110-220V 50/60HZ
Max power	3000W
Industrial PC	I7 CPU, 16G RAM, 240GB SSD + 1T HDD
Displayer	24" HDMI LCD

Working Principle

Safety Features

Radiation leakage: No leakage (≤1μSv/h - international standard)
Transparent lead glass observation window for safe internal viewing
Window and back door safety interlock system
Electromagnetic safety switch locks when X-ray is active
Emergency stop button near operation position
Automatic tube protection when leaving software

Software Capabilities

Function Module	Operation
X-ray tube control	Mouse-click operation with real-time voltage/current display and adjustment
Status bar	Visual indicators for interlock, pre-heat, and X-ray status
Image effect adjustment	Customizable brightness, contrast and gain settings
Product list	Save and recall inspection parameters for efficiency
Navigation window	Click-to-move functionality for precise positioning
Motion axis status	Real-time coordinate display
Inspection results	Clear display of measurement data with pass/fail indicators
Speed control	Adjustable movement speed for each axis

Voids Rate Measurement

Automatic calculation of solder ball voids rate, area, circumference
Manual void addition via polygon/freehand drawing
Parameter saving for consistent inspection of identical products
Adjustable parameters for precise measurement (grayscale threshold, pixel, contrast)

Additional Measurement Functions
