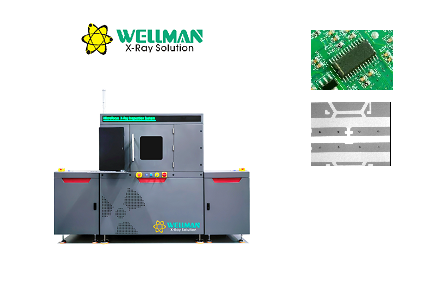

Fast Automated X Ray System with Long Life Tube for Industrial Quality Control

Detail Information
Product Description
Detail Information
Product Description
Fast Automated X Ray System with Long Life Tube for Industrial Quality Control
Overview

High-performance automated inline X-ray inspection platform for industrial electronic manufacturing and quality assurance.

Working Principle
Fast Automated X Ray System with Long Life Tube for Industrial Quality Control 0
Key Performance Highlights
  • Long-life sealed microfocus tube
  • High-resolution digital flat panel detector
  • Six-axis servo precision motion
  • One-click automatic navigation
  • Fast batch automated inspection
  • Safe low-radiation design
  • Easy operation and fast learning
Core Parameters Summary
Category Specification
X-ray Source 90kV / 200μA / 5μm focal spot
Detector 130mm×130mm / 1536×1536 / 20fps
Motion 6-axis servo
Load 10kg
Speed Max 3.0s per point
Safety ≤1μSv/h leakage, full interlock
Power AC110-220V, 3000W
Software Capabilities
  1. Real-time X-ray control and parameter adjustment
  2. Image enhancement and quality optimization
  3. Automatic void rate analysis and OK/NG marking
  4. Distance, angle, area and radius measurement
  5. Programmable point and array auto-inspection
  6. Parameter preset and quick recall
Application Fields
  • Solder void & bridge detection
  • PCB and through-hole quality check
  • Semiconductor and LED component testing
  • Capacitor, inductor and sensor inspection
  • Automotive electronics and cable analysis
  • Fiberglass and metal assembly verification
Application Examples
Fast Automated X Ray System with Long Life Tube for Industrial Quality Control 1
BGA Solder Bridge
Fast Automated X Ray System with Long Life Tube for Industrial Quality Control 2
BGA Solder Voids
Fast Automated X Ray System with Long Life Tube for Industrial Quality Control 3
PCB Through-Hole
Fast Automated X Ray System with Long Life Tube for Industrial Quality Control 4
IC Voids and Gold Wire
Fast Automated X Ray System with Long Life Tube for Industrial Quality Control 5
LED Solder Voids
Fast Automated X Ray System with Long Life Tube for Industrial Quality Control 6
LED Gold Wire Crack
Fast Automated X Ray System with Long Life Tube for Industrial Quality Control 7
Capacitor
Fast Automated X Ray System with Long Life Tube for Industrial Quality Control 8
Inductor
Fast Automated X Ray System with Long Life Tube for Industrial Quality Control 9
Sensor
Fast Automated X Ray System with Long Life Tube for Industrial Quality Control 10
Thyristor Surge Suppressors
Fast Automated X Ray System with Long Life Tube for Industrial Quality Control 11
Fiberglass
Fast Automated X Ray System with Long Life Tube for Industrial Quality Control 12
Cable
Fast Automated X Ray System with Long Life Tube for Industrial Quality Control 13
Diode
Fast Automated X Ray System with Long Life Tube for Industrial Quality Control 14
Steel Pipe Welding Gap
Fast Automated X Ray System with Long Life Tube for Industrial Quality Control 15
Automobile Electronics
