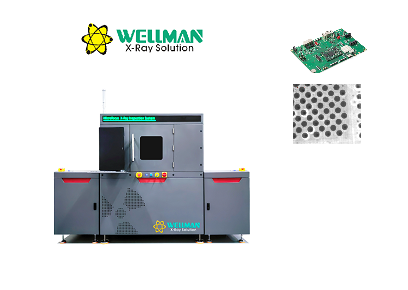

Safe Zero Leakage Auto-fully X Ray Inspection System with Easy Operation and Fast Training

Detail Information

Product Description

Detail Information

Product Description

Safe Zero Leakage Auto-fully X Ray Inspection System with Easy Operation and Fast Training

Working Principle

Core Advantages

Closed type X-ray tube with over 10,000 hours lifetime, maintenance-free
New generation 5" HD digital flat panel detector (FPD)
Automatic navigation window - table moves to where you click
Belt transmission with width adjustment by lead screw & guide rail, max width 620mm
6-axis motion system equipped with servo motor, X-ray tube and FPD move in sync
Edit inspection procedures for automated inspection in large quantities
Easy to operate with quick defect finding - only 2 hours training required

Hardware Specifications

X-ray Source

Type	Closed, microfocus
Max Tube Voltage	90kV
Max Tube Current	200μA
Focal Spot Size	5μm
Function	Auto preheat

Flat Panel Detector

Brand	IRay
Effective Area	130mm × 130mm
Pixel Size	85μm
Resolution	1536 × 1536
Frame Rate	20fps
Tiltable Angle	60°

Inspection

Transmission	Belt
Motor	Servo motor
Detectable Area	Length 520mm, width 80-430mm adjustable
Max Load	10kg

Equipment

Magnification	Geometry 200X \| System 1500X
Inspection Speed	Max 3.0s/point
Dimensions	2600mm (L) × 1300mm (W) × 1800mm (H)
Host Machine Dimensions	1400mm (L) × 1300mm (W) × 1800mm (H)
Weight	2200kg
Power Supply	AC110-220V 50/60HZ
Max Power	3000W
Industrial PC	I7 CPU, 16G RAM, 240GB SSD + 1T HDD
Displayer	24" HDMI LCD

Safety

Radiation Leakage	No leakage, international standard: ≤1μSv/h
Lead Glass Observation Window	Transparent lead glass window shields radiation to observe inner status
Window and Back Door Safety Interlock	X-ray tube powers off immediately when window or back door is opened
Electromagnetic Safety Switch	Locks when X-ray is on, preventing observation window opening
Emergency Stop	Located next to operation position, press to power off
Tube Protection	Software prevents leaving without closing X-ray tube

Software Functions

Full mouse and keyboard control for all operations
Real-time X-ray parameter adjustment and status monitoring
Image brightness, contrast and gain fine-tuning
One-click navigation and automatic table positioning
Automatic void rate calculation and defect judgment
Multi-type measurement: distance, angle, radius, perimeter
Batch automatic inspection via point or array mode

Typical Applications

BGA solder inspection, PCB through-hole detection, IC and LED assembly check, capacitor and inductor testing, automotive electronics, cable and fiberglass analysis.
