Inline Microfocus X Ray Testing Equipment Maintenance Free Sealed Tube For PCB

Brand Name:	WELLMAN
Model Number:	IL-3000
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE, FDA

Type:

Microfocus

Max Tube Voltage:

Max Tube Current:

200μA

Focal Spot Size:

Detectable Area:

Length 520mm, Width 80-430mm Adjustable

Packaging Details:

Wooden case

Highlight:

Inline Microfocus X Ray Equipment

Maintenance Free X Ray Tube

Sealed X Ray Tube for PCB

Product Description

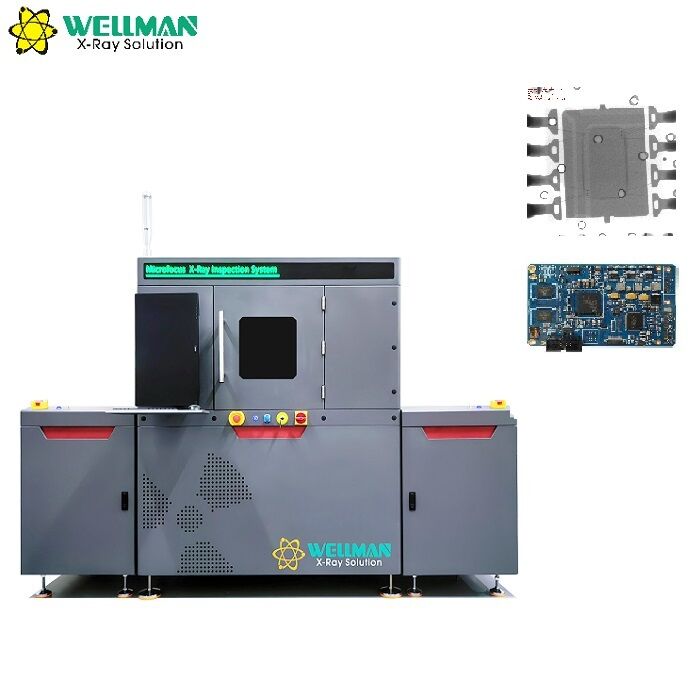

WELLMAN IL-3000 In-line X-Ray Inspection Machine

The WELLMAN IL-3000 is a high-performance in-line industrial X-ray inspection system designed for automated PCB and BGA void detection in SMT manufacturing environments.

Key Advantages

Closed-type X-ray tube with over 10,000 hours service life and maintenance-free design
Next-generation 5-inch HD digital flat panel detector FPD
Customizable inspection processes supporting automated high-volume inspection
Intuitive operation requiring merely 2 hours of training for full proficiency
Smart auto-navigation window enables automatic table positioning at clicked spots
Conveyor belt transmission supports adjustable width with a maximum span of 620mm
6-axis motion system fitted with servo motors for synchronized movement of X-ray tube and FPD

Hardware Specifications

X-ray Source

Type	Closed, microfocus
Max tube voltage	90kV
Max tube current	200μA
Focal spot size	5μm
Function	Auto preheat

Flat Panel Detector

Brand	IRay
Effective area	130mm * 130mm
Pixel size	85μm
Resolution	1536 * 1536
Frame rate	20fps
Tiltable angle	60°

Inspection System

Transmission	Belt
Motor	Servo motor
Detectable area	Length 520mm, width 80-430mm adjustable
Max load	10kg

Equipment Specifications

Magnification	Geometry 200X \| System 1500X
Inspection speed	Max 3.0s/point
Dimensions	2600mm (L) * 1300mm (W) * 1800mm (H)
Host machine dimensions	1400mm (L) * 1300mm (W) * 1800mm (H)
Weight	2200kg
Power supply	AC110-220V 50/60HZ
Max power	3000W
Industrial PC	I7 CPU, 16G RAM, 240GB SSD + 1T HDD
Displayer	24" HDMI LCD

Safety Features

Zero radiation leakage, fully compliant with international standard ≤1μSv/h
Electromagnetic safety lock activates automatically while X-ray is energized
Radiation-proof transparent lead glass window for secure internal inspection
Window and back door safety interlock system
Automatic tube protection when software is exited
Emergency stop button located near operation position

Software Functions

Basic Operation

Full keyboard and mouse control, X-ray tube control via mouse click with real-time voltage and current display, status bar displays interlock pre-heat and X-ray status, image brightness contrast and gain are adjustable, real-time motion axis coordinate display, inspection result display with measurement data, product parameter saving and recall for efficient inspection, navigation window for precise table positioning, adjustable axis movement speeds (slow, normal, fast).

Voids Rate Measurement

Automatic calculation of voids rate, solder ball area, circumference, etc. Parameter saving for consistent product inspection. Adjustable grayscale threshold, pixel, contrast, and size filtering parameters. Manual void addition via polygon or freehand drawing.

Measurement Functions

Radius measurement for circular components, distance measurement between points, distance rate calculation for through-hole soldering, angle measurement between points, perimeter measurement for square components.

Automatic Inspection

Manual inspection point setting, array inspection for regular patterns, automatic feature recognition for distinctive inspection points.

Application Examples

Example of IL-3000 X-ray inspection results

Additional example of inspection results

Working Principle

Working principle of the IL-3000 X-ray inspection system
