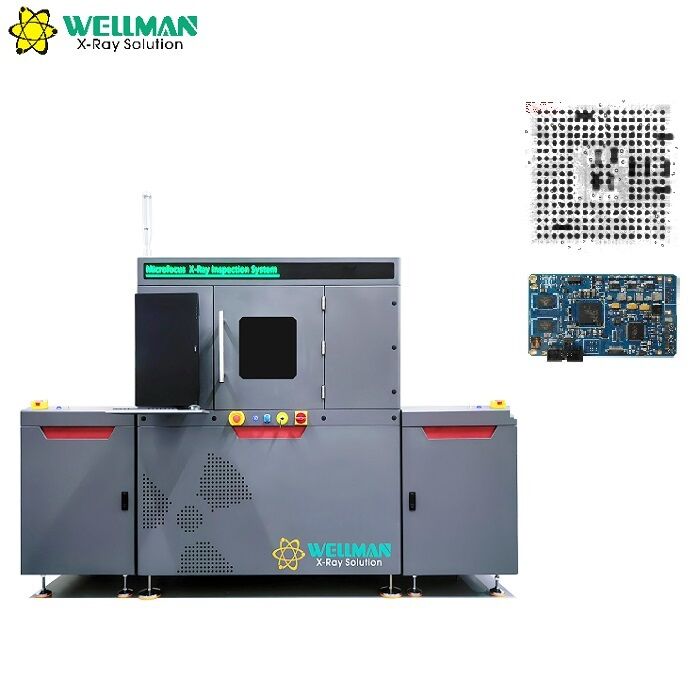

Inline Microfocus X-Ray Inspection Machine - High-performance automated inspection solution featuring 5-inch HD FPD for BGA void analysis in SMT production lines.

Key Advantages

Sealed X-ray tube boasting a service life of over 10,000 hours and maintenance-free operation
Next-gen 5-inch HD digital flat panel detector (FPD) provides outstanding image clarity
Intelligent auto-navigation window automatically shifts the worktable to selected inspection spots
Conveyor belt system with lead screw and guide rail for flexible width adjustment, maximum width up to 620mm
6-axis motion system with servo motors for synchronized X-ray tube and FPD movement
Customizable inspection procedures for automated high-volume production
Intuitive operation with quick defect identification - only 2 hours training required

Hardware Specifications

X-ray Source

Type	Closed, microfocus
Maximum Tube Voltage	90kV
Maximum Tube Current	200μA
Focal Spot Size	5μm
Function	Auto preheat

Flat Panel Detector

Brand	IRay
Effective Area	130mm × 130mm
Pixel Size	85μm
Resolution	1536 × 1536
Frame Rate	20fps
Tiltable Angle	60°

Inspection System

Transmission	Belt
Motor	Servo motor
Detectable Area	Length 520mm, width 80-430mm adjustable
Maximum Load	10kg

Equipment Specifications

Magnification	Geometry 200X \| System 1500X
Inspection Speed	Maximum 3.0s/point
Dimensions	2600mm (L) × 1300mm (W) × 1800mm (H)
Host Machine Dimensions	1400mm (L) × 1300mm (W) × 1800mm (H)
Weight	2200kg
Power Supply	AC110-220V 50/60HZ
Maximum Power	3000W
Industrial PC	I7 CPU, 16G RAM, 240GB SSD + 1T HDD
Display	24" HDMI LCD

Safety Features

Radiation leakage: No leakage, meets international standard (≤1μSv/h)
Electromagnetic safety switch locks when X-ray is active
Emergency stop button located near operation position
Built-in tube protection function blocks software exit if the X-ray tube remains energized
Radiation-resistant transparent lead glass viewing window enables safe real-time monitoring of internal working status
Safety interlock fitted for observation window and rear door; X-ray source instantly cuts off power once either is opened

Software Capabilities

Function Module	Operation
X-ray Tube Control	Mouse-click operation with real-time voltage/current display and adjustment
Status Bar	Visual indicators for interlock, pre-heat, and X-ray status
Image Effect Adjustment	Customizable brightness, contrast and gain settings
Product List	Save and recall inspection parameters for improved efficiency
Navigation Window	Click-to-move functionality for precise positioning
Motion Axis Status	Real-time coordinate display
Inspection Result	Organized display of measurement results (voids rate, distance, area, etc.)
Speed Control	Adjustable movement speed (slow, normal, fast) for each axis
