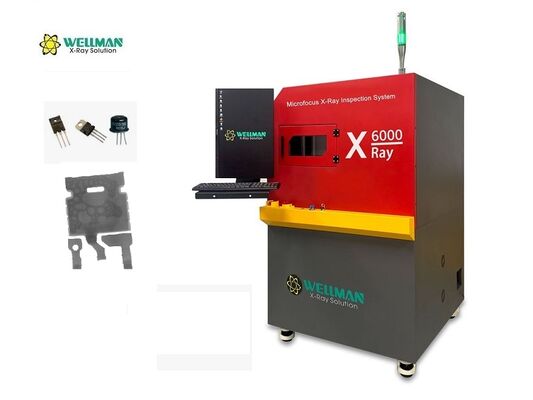

Automatic X-ray Inspection Equipment with Simple Operation for PCBA/BGA/LED inspection

Brand Name:	WELLMAN
Model Number:	X-6000
MOQ:	1
Payment Terms:	T/T
Supply Ability:	Worldwide supply

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO9001,FDA

Max Tube Voltage:

Max Load:

Packaging Details:

Wooden case

Supply Ability:

Worldwide supply

Highlight:

Automatic X-ray inspection equipment for PCBA

PCB X-ray machine with simple operation

BGA inspection X-ray equipment

Product Description

Automatic X-ray Inspection Equipment for PCBA/BGA/LED Inspection

The X-6000 Automatic Inspection Equipment delivers advanced X-ray inspection capabilities for PCBA, BGA, and LED components with intuitive operation and high efficiency.

Working Principle

Working Principle Diagram

Key Advantages

13×13 cm high-definition large-area digital flat panel detector
420×420mm table with 15KG load capacity
Easy operation - only 2 hours training required
Hamamatsu tubes ensure extended lifespan and maintenance-free operation
Programmable inspection procedures for automated high-volume inspection
Automatic navigation window - table moves to your click location

Hardware Specifications

X-ray Source
Type	Closed, microfocus
Max Tube Voltage	90kV
Max Tube Current	200μA
Focal Spot Size	5μm
Function	Auto preheat
Flat Panel Detector
Effective Area	130mm×130mm
Pixel Size	85μm
Resolution	1536×1536
Frame Rate	20fps
Table
Size	420mm×420mm
Detectable Area	400mm×400mm
Max Load	15kg
Equipment
Magnification	Geometry 150X \| System 1500X
Inspection Speed	Max 3.0s/point
Dimensions	1100mm (L) × 1000mm (W) × 1600mm (H)
Weight	1000kg
Power Supply	AC110-220V 50/60HZ
Max Power	1300W
Industrial PC	Intel I5 CPU, 8G RAM, 240GB SSD
Displayer	24" HDMI LCD

Safety Features

Emergency Stop: Located next to operation position for immediate power cutoff
Tube Protection: Software prevents leaving without closing X-ray tube
Radiation Leakage: No leakage (international standard: ≤1μSv/h)
Lead Glass Observation Window: Transparent lead glass window shields radiation to observe internal status
Window and Back Door Safety Interlock: X-ray tube powers off immediately when window or door opens

Software Functions

X-ray Tube Control: Using mouse to click the X button can turn on or off the X-ray
Status Bar: Indicates the interlock status, pre-heat status, and X-ray status by flashing alternately red and green
Image Effect Adjustment: The brightness, contrast and gain of the image can be adjusted freely to achieve a satisfactory result
Product List: Users can save the inspection parameters such as Z-axis position, and can directly call the parameters
Navigation Window: The table will move to the place you click and display on the screen
Motion Axis Status: Display real-time coordinates
Inspection Result: The measurement results (voids rate, distance, area, etc., set by users) display in order
Speed Control: The movement speed of each axis can be adjusted to slow, normal and fast
Voids Rate Measurement: Automatic calculation - Click on two points to determine a rectangle
Parameters Adjustment: Users can adjust the grayscale threshold, pixel and other parameters to get accurate results of automatic calculation
Add Voids Manually: Users can draw a polygon or a free figure and calculate it as a void into the void rate
Save Parameters: Users can save parameters such as grayscale threshold and can directly call the parameters

Other Measurement Functions

Distance: Click the A and B points to set as the baseline, then click the C point to measure the vertical distance
Distance Rate: Mostly used to measure the soldering rate of the through-hole
Angle: Click the A and B points to set as the baseline, then click the C point to measure the angle between the BA and BC rays
Radius: Click three points to determine a circle and measure the circumference, area and radius
Perimeter: Click two points to determine a square, measure the length, width and area

Automatic Inspection

Manual Setting: Users can set any positions on the table as inspection points, the software will automatically inspect and save the picture
Array: Users only need to set two of the inspection points and the number of rows and columns
Automatic Identification: For inspection points with obvious features, the software automatically identifies the positions, takes measurements, and saves the image

Application Examples

BGA Solder Bridge

BGA Solder Voids

PCB Through-Hole

IC Voids and Gold Wire

LED Solder Voids

LED Gold Wire Crack

Capacitor

Inductor

Sensor

Thyristor Surge Suppressors

Fiberglass

Cable

Diode

Steel Pipe Welding Gap

Automobile Electronics
