X Ray Inspection System Maintenance Free Tube For BGA PCB Void Detection

Brand Name:	WELLMAN
Model Number:	X6800
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,FDA

Power:

Electronic,0.5KW,1500W

Warranty:

1 Year,12 Months,10000 Hours,one Year

Application:

SMT PCB PKG LED Electronics Battery Harness Cultural Assets Etc,Flip Chip,BGA,SMT PCB BGA

Power Supply:

AC220V(Optional),110V - 220V,220V 50Hz

Tube Type:

Closed X-ray Tube,Closed

Name:

BGA X-ray Equipment,X-ray Inspection Machine,pcb X-ray Machine

Operating System:

Win 10

Voltage:

220V/50Hz,50-90KV

X-ray Leakage Amount:

≤1 U Sv/h,≤0.3 U Sv/h

Total Power:

2.5Kw,1.7Kw

Pixel Size:

Resolution:

1536*1536

Max Tube Current:

200μA

Packaging Details:

Wooden case

Highlight:

BGA PCB X Ray inspection system

maintenance free X Ray tube

PCB void detection X Ray machine

Product Description

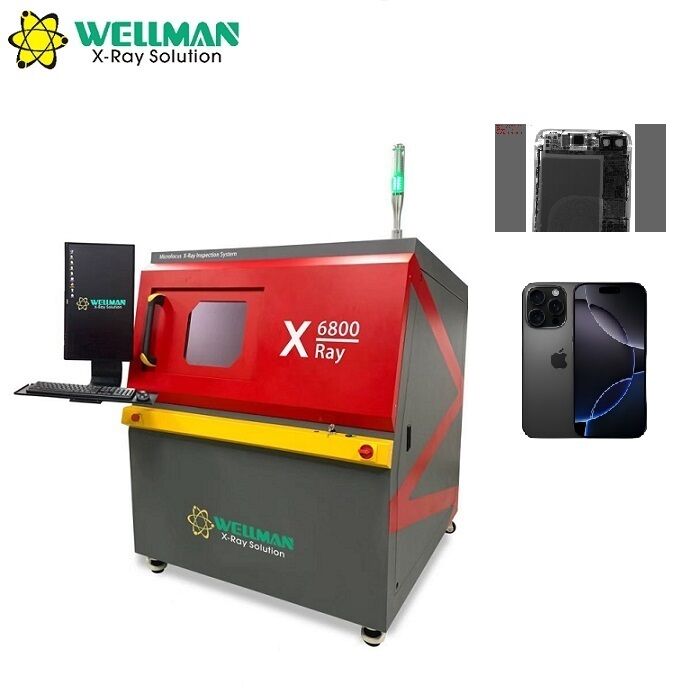

X-Ray Inspection System with Maintenance-Free Tube for BGA PCB Void Detection

Wellman X-ray Inspection X6800 for SMT Manufacturing, BGA, and LED applications

Key Features

530×530mm worktable with 10KG load capacity
5-axis linkage system with adjustable speed
Programmable inspection procedures for automated batch testing
Intuitive operation requiring only 2 hours training
Sealed X-ray tube boasting a service lifespan exceeding 10,000 hours
Equipped with 5-inch high-definition digital flat panel detector (FPD)
60-degree tilt-capable FPD preserves full magnification without loss
Intelligent auto-navigation window enables one-click worktable positioning

Technical Specifications

X-ray Source

Type	Closed, microfocus
Max tube voltage	90kV
Max tube current	200μA
Focal spot size	5μm
Function	Auto preheat

Flat Panel Detector

Effective area	130mm×130mm
Pixel size	85μm
Resolution	1536×1536
Frame rate	20fps
Tiltable angle	60°

Table Specifications

Size	530mm×530mm
Detectable area	500mm×500mm
Max load	10kg

Equipment Specifications

Magnification	Geometry 200X \| System 1500X
Inspection speed	Max 3.0s/point
Dimensions	1360mm (L) × 1365mm (W) × 1730mm (H)
Weight	1200kg
Power supply	AC110-220V 50/60HZ
Max power	1500W
Industrial PC	I5 CPU, 8G RAM, 500GB SSD
Displayer	24" HDMI LCD

Working Principle

X6800 PCB X-ray Inspection Machine working principle diagram

Safety Features

Radiation leakage: No leakage, meeting international standard (≤1μSv/h)
Electromagnetic safety switch automatically locks during X-ray operation
Emergency stop button for quick power-off
Built-in tube protection prohibits exiting software while the X-ray tube remains active
Transparent lead glass viewing window enables secure observation of internal parts
Safety interlock design fitted on observation window and rear door

Software Capabilities

Core Functions

Real-time motion axis coordinate display
Inspection results display (voids rate, distance, area, etc.)
Product list for saving and recalling inspection parameters
Navigation window for precise table positioning
Mouse/keyboard controlled X-ray tube operation with real-time voltage/current display
Adjustable axis movement speeds (slow/normal/fast)
Status bar showing interlock, pre-heat, and X-ray status
Adjustable image brightness, contrast and gain

Voids Rate Measurement
