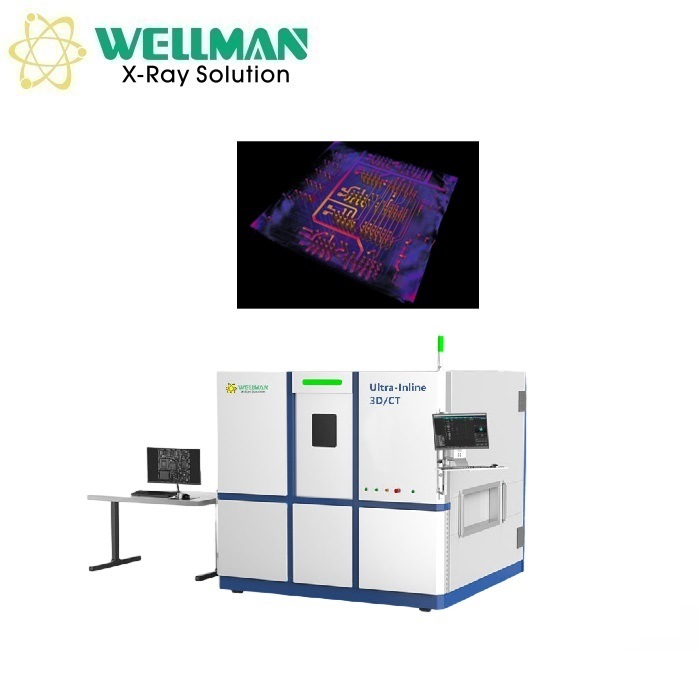

Name: 750mm PCBA Circuit Board X Ray Machine For With 4μM Resolution
Brand: SHENZHEN WEIMING PHOTOELECTRIC CO.,LTD.
SKU: Ultra-Inline CT/3D
Availability: InStock

Brand Name:	WELLMAN
Model Number:	Ultra-Inline CT/3D
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE FDA

X-ray Tube Type:

Closed-tube X-ray Source

Tube Voltage Range:

20-160 KV

Pixel Matrix:

1536×1536

Equipment Size:

1800 Mm×1800 Mm×2300 Mm （Length × Width × Height）

Pixel Size:

100 μm

Highlight:

4μM Circuit Board X Ray Machine

750mm Circuit Board X Ray Machine

750mm electronics x ray inspection

Product Description

High-Efficiency 3D X Ray Inspection for Large-Sized PCBAs and SMT Solder Joints

Equipment Features

Full 3D automatic imaging and analysis
Applicable for both on-line inspection and off-line analysis
Capable of achieving fast CT imaging, with the fastest local imaging time less than 3 seconds
Solves the problem of solder joint defect inspection that cannot be achieved by traditional 2D and 2.5D equipment
Can be connected to the user's database to directly import inspection results

Inspection Applications

Large-sized PCBA boards
The internal structure quality of semiconductor packaging products
The welding quality of various types of SMT solder joints, including open soldering, wetting conditions, solder volume, offset, foreign objects, bridging, and the presence of pins

Equipment Performance Parameters

Parameter	Specification
Maximum possible sample size	750 mm*530 mm (Length x Width)
Maximum imaging area	730 mm*510 mm (Length x Width)
JIMA card resolution	4μm
Equipment weight	5T
Equipment size	2336 mm2321 mm2109 mm (Length * width * height)
Imaging software system	A set of online plate CT imaging system, including integrated scanning, data analysis and other modules

Detector Parameters

Parameter	Specification
Detector type	Amorphous silicon flat panel detector
Pixel size	49.8 μm
Pixel matrix	2304*2813
Effective imaging area	115 mm*140 mm
Picture frame rate	18 fps (1*1)
