Name: 130KV Electronics X Ray Inspection Machine For 300mm Sample Size
Brand: SHENZHEN WEIMING PHOTOELECTRIC CO.,LTD.
SKU: T-130
Availability: InStock

Brand Name:	WELLMAN
Model Number:	T-130
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE FDA

X-ray Tube Type:

Closed-tube X-ray Source

Tube Voltage Range:

40-130 KV

Pixel Matrix:

1536×1536

Equipment Size:

2150mmx900mmx1750mm(Length × Width × Height)

Pixel Size:

100 μm

Highlight:

300mm Electronics X Ray Inspection

130KV Electronics X Ray Inspection

300mm circuit board x ray machine

Product Description

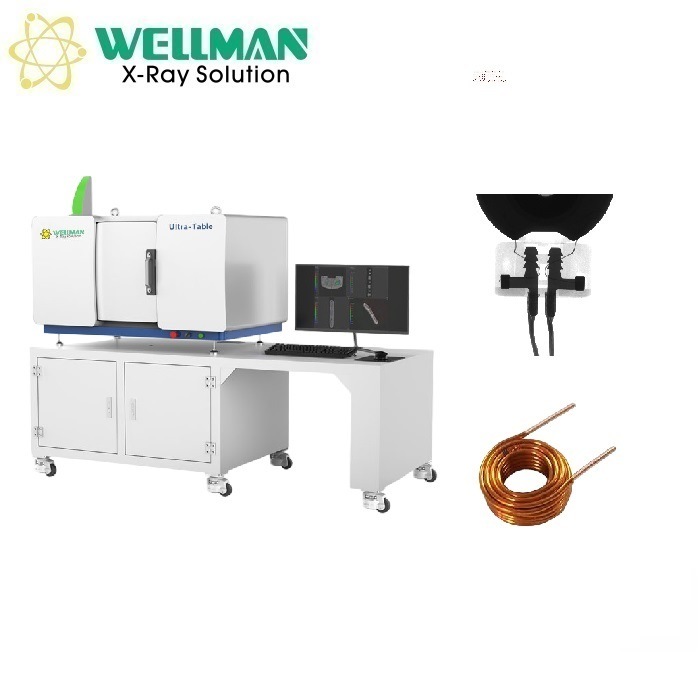

Compact and Space-Saving 3D X-Ray Inspection System

Ultra-table design for small-sized PCBA boards and semiconductor packaging products with high scanning accuracy and easy operation.

Key Equipment Features

Compact structure with minimal space requirements
One-click full-process automation for data scanning, 3D reconstruction, and image analysis
High precision scanning capabilities

Inspection Applications

Small-sized PCBA boards
Internal structure quality of semiconductor packaging products
SMT solder joint quality inspection including:
- Cold solder joints
- Wetting issues
- Solder volume analysis
- Component offset detection
- Foreign object identification
- Bridging detection
- Pin presence verification

Technical Specifications

Ray Source Parameters

Type of ray tube	Closed tube X-ray source
Tube voltage range (T-130)	40-130 KV

Detector Parameters

Detector type	Amorphous silicon flat panel detector
Pixel size (T-130)	100μm
Pixel matrix (T-130)	1536x1536

Equipment Performance Parameters

Maximum sample size (T-130)	Diameter: 300mm * Height: 320mm
Maximum imaging area (T-130)	Diameter: 200mm * Height: 120mm
JIMA card resolution	3μm
Equipment weight (T-130)	1T
Equipment dimensions (T-130)	2150mm * 900mm * 1750mm (LWH)
