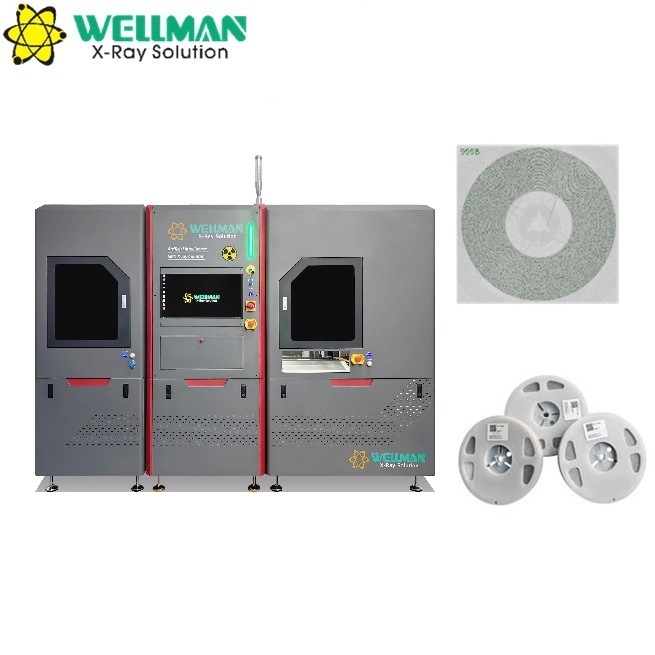

| Brand Name: | WELLMAN |
| Model Number: | IL-1000 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| X-ray Source | |
|---|---|
| Type | Microfocus |
| Max tube voltage | 80kV |
| Max tube current | 700μA |
| Focal spot size | 30μm |
| Flat Panel Detector | |
| Type | Super definition digital FPD |
| Effective area | 430mm*430mm |
| Pixel size | 139μm |
| Resolution | 3072*3072 |
| Reel/Tray Counting | |
| Max size (Auto mode) | 15" (380mm) |
| Max thickness (Auto mode) | 50mm |
| Min parts size | 01005 |
| Speed | 12-15s |
| Accuracy (01005) | ≥ 99.98% |
| Accuracy (0201 & above) | ≥ 99.99% |
| Dimensions | 2700mm (L) * 1400mm (W) * 1900mm (H) |
| Weight | 3000kg |
| Power supply | AC110-220V 50/60HZ |
| Max power | 4800W |
| Industrial PC | I7 CPU, 16G RAM, 256G SSD+4T HDD |
| Displayer | 24" HDMI LCD |
| Reel size | Parts size | Quantity | Accuracy | Speed |
|---|---|---|---|---|
| 7" (180mm) | 01005 | 10000 | 99.98% | 12-13s |
| 7" (180mm) | 0201 | 10000 | 99.99% | 11-12s |
| 7" (180mm) | 0402 | 10000 | 99.99% | 11-12s |
| 7" (180mm) | 0603 | 5000 | 99.99% | 10-11s |
| 10" (254mm) | 1206 | 5000 | 99.99% | 10-11s |
| 15" (380mm) | 1206 | 10000 | 99.99% | 11-12s |
Our counting software utilizes a powerful artificial intelligence deep learning algorithm that automatically identifies components without manual binding. The system learns from counted component data including:
As counting operations increase, results become progressively more accurate, enabling efficient handling of similar components or larger trays.
Each Wellman X-ray counter links to our cloud database, automatically uploading machine data and images and downloading the latest database updates. Our engineers keep optimizing algorithms using collected data, with regular updates sent to customer machines.
This system ensures counting accuracy approaches 100% over time while expanding component type coverage. When encountering new components, the system can immediately access relevant data if available in our database.
