Name: Hamamatsu BGA X Ray Machine X8800 With 400×400mm Table 10KG Load
Brand: SHENZHEN WEIMING PHOTOELECTRIC CO.,LTD.
SKU: X8800
Availability: InStock

Brand Name:	Wellman
Model Number:	X8800
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE FDA

Type:

Closed, Microfocus

Max Tube Voltage:

90kV

Max Tube Current:

200μA

Focal Spot Size:

5μm

Effective Area:

130mm*130mm

Highlight:

Hamamatsu BGA X Ray Machine

400×400mm BGA X Ray Machine

400×400mm bga x ray inspection

Product Description

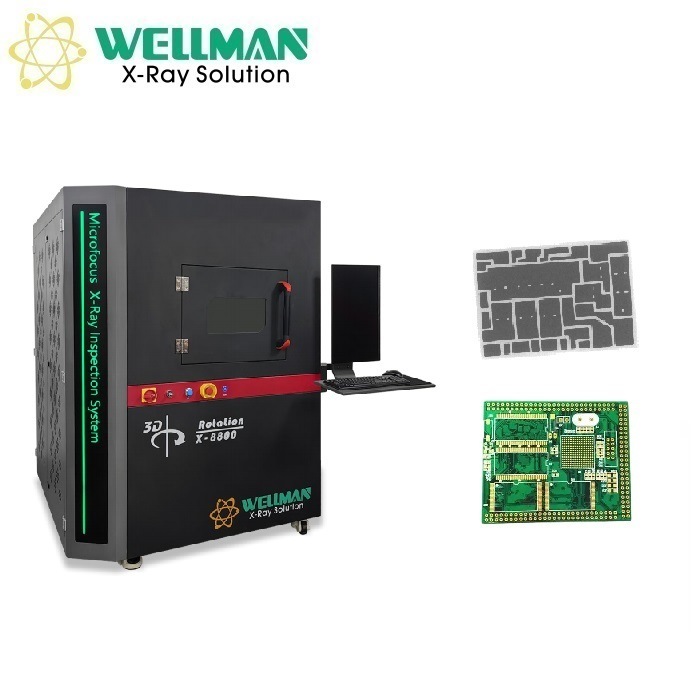

Microfocus X-Ray Inspection System X8800

High-precision industrial X-ray inspection system featuring Japan Hamamatsu X-ray tube with advanced safety features and automated inspection capabilities.

Key Advantages

Japan Hamamatsu X-ray tube - World's best closed type with over 10,000 hours lifetime, maintenance-free
New generation 5" HD digital flat panel detector (FPD)
FPD tilts ±45° and rotates 360° for flexible positioning
Automatic navigation window - table moves to clicked position
400*400mm table with 10KG load capacity
Speed adjustable 5-axis linkage system
Programmable inspection procedures for automated batch inspection
Intuitive operation with only 2 hours training required

Safety Features

Radiation leakage: No leakage (international standard: ≤1μSv/h)
Transparent lead glass observation window shields radiation
Window and back door safety interlock - X-ray tube powers off when opened
Electromagnetic safety switch locks when X-ray is on
Emergency stop button near operation position
Tube protection prevents leaving software without closing X-ray

Measurement Functions

Voids rate measurement: Automatic calculation with adjustable parameters
Distance measurement: Vertical distance calculation from baseline
Distance rate: Percentage ratio measurement for through-hole soldering
Angle measurement: Between two defined rays
Radius measurement: For circular components with circumference and area
Perimeter measurement: For square components with length, width and area

Automated Inspection

Manual setting: Custom inspection point positioning
Array: Automatic inspection of regular patterns
Automatic identification: Feature-based position detection

Technical Specifications

X-ray Source

Brand	Japan Hamamatsu
Type	Closed, microfocus
Max tube voltage	90KV
Max tube current	200μA
Focal spot size	5μm
Function	Auto preheat

Flat Panel Detector

Effective area	130mm*130mm
Pixel size	85μm
Resolution	1536*1536
Frame rate	20fps
Tiltable angle	±45°
Rotation angle	360°

Table

Size	400mm*400mm
Detectable area	400mm*400mm
Max load	10kg

Equipment

Magnification	Geometry: 200X \| System: 1500X
Inspection speed	Max 3.0s/point
Dimensions	1550mm(L)1600mm(W)1700mm(H)
Weight	1800kg
Power supply	AC110-220V 50/60HZ
Max power	1800W
Industrial PC	15 CPU, 8G RAM, 240GB SSD
Displayer	24"HDMI LCD

Software Capabilities

Function Module	Description
Operation	Complete control via keyboard and mouse
X-ray tube control	Mouse-click operation with real-time voltage/current display and adjustment
Status bar	Visual indicators for interlock, pre-heat, and X-ray status
Image adjustment	Customizable brightness, contrast and gain settings
Product list	Save and recall inspection parameters for efficiency
Navigation window	Click-to-move table positioning
Motion axis status	Real-time coordinate display
Inspection result	Measurement results display (voids rate, distance, area, etc.)
Speed control	Adjustable movement speed for each axis
