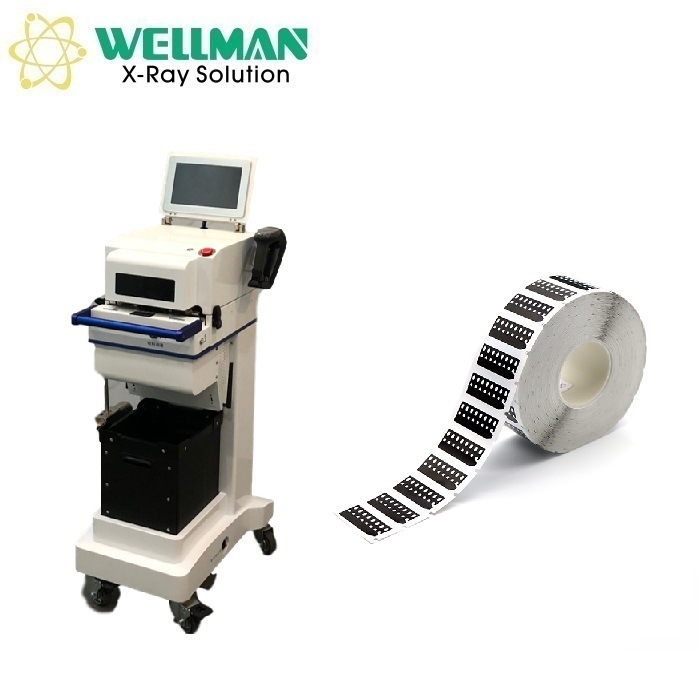

Precision Detection Automatic Splicing Machine With 98% Success Rate High Efficiency

Precision Detection Automatic Splicing Machine With 98% Success Rate High Efficiency

Brand Name: WELLMAN
Model Number: RS-1000
MOQ: 1
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE FDA
Charge Power Supply:
220V 50Hz
Camera:
Left, Right 130W Pixel Camera
Power Rating:
150W
Per Pass Rate:
≥97％
Mechanicalness Noise:
50 Decibel
Highlight:

Precision Detection Automatic Splicing Machine

,

High Efficiency Automatic Splicing Machine

,

High Efficiency automatic splicer machine

Product Description
Automatic Splicing Machine for SMT Lines with SMT Auto Reel Splicing Machine RS-1000
The SMT Auto Reel Splicing Machine RS-1000 is a high-performance solution for automated material splicing in SMT production lines, designed to maximize efficiency and minimize downtime.
Key Advantages
  • Simple Operation: New operators achieve proficiency within 10 minutes, reducing machine downtime
  • Labor Savings: One operator can manage two SMT lines simultaneously
  • Precision Detection: CCD optical system automatically detects material presence and calibrates cut positions
  • Material Recovery: Single-button operation for automatic material belt recycling
  • High Efficiency: Completes connections in just 10 seconds with 98% success rate
  • Error Prevention: Integrated barcode scanning prevents material mismatches
Specifications
Dimensions 550mm * 470mm * 1300mm (L*W*H, including scanner)
Work Height 890mm
Connection Cycle 10 seconds (including material collection and detection)
Connection Precision 0.08mm
Power Source 18650 battery pack DC 36V (12-14 hours operation)
Camera System Dual 130W pixel cameras with LED white light source
Success Rate ≥97%
Operating System Industrial PC with 10.1" touch display, Win 10
Weight 62kg (excluding battery)
Material Compatibility
Compatible with paper and adhesive type materials, width 8mm, thickness 0.25-1.3mm. Handles 99% of market-available materials (special materials require confirmation).
Machine Components
SMT Auto Reel Splicing Machine RS-1000 main structure
Main structure overview
Detailed view of spindle structure
Spindle structure detail
Rail transfer mechanism overview
Rail transfer mechanism
User interface and control panel
Operation interface
Performance Analysis
Time comparison: automatic vs manual connection
Time efficiency comparison
Effectiveness comparison: automatic vs manual connection
Success rate comparison
Software interface and functionality overview
Software features
