| Brand Name: | WELLMAN |
| Model Number: | Ultra-One 3D/CT |
| MOQ: | 1 |
| Payment Terms: | T/T |

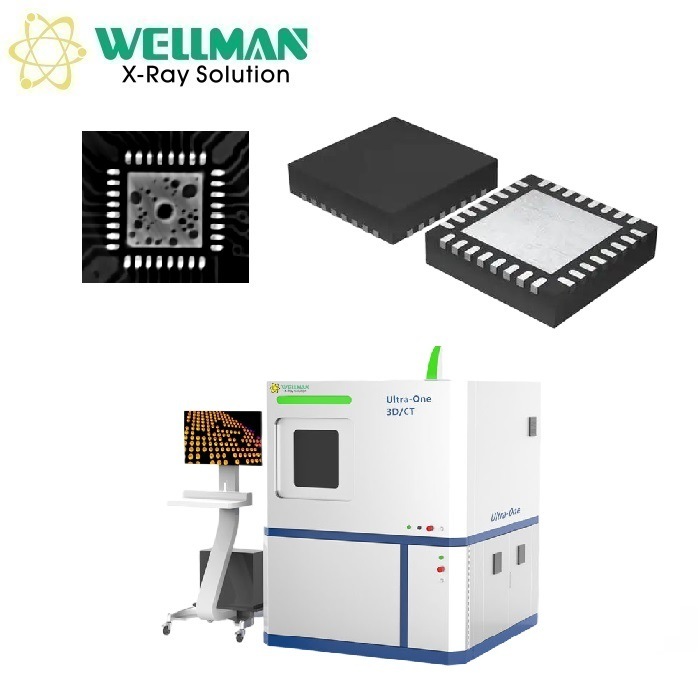

Nanoscale CT/3D inspection equipment
Technical Specifications
| X-ray Source Parameters | |
|---|---|
| X-ray Tube Type | Closed-tube X-ray source |
| Tube voltage range | 20-160 KV |
| Detector parameter | |
| Detector type | Amorphous silicon fat panel detector |
| Pixel size | 100 μm |
| Pixel matrix | 1536*1536 |
| Equipment Performance Parameters Details | ||
|---|---|---|
| Maximum possible sample size | Flat test bench 580*530mm Rotating test stand 300*300mm Rollover test stand 250*300mm |
|
| Maximum imaging area | Flat test bench 460*410mm Rotating test stand 300*300mm Rollover test stand 250*100mm |
|
| JIMA card resolution | Standard 0.9μm, max 0.5μm | |
| Equipment weight | 4T | |
| Equipment size | 1800 mm*1800 mm*2300 mm (Length * width * height) | |
| Imaging software system | Integrated scanning imaging software 3D image reconstruction software 3D image measurement and analysis software Image database management software |
|
