| Brand Name: | WELLMAN |
| Model Number: | IL-3000 |
| MOQ: | 1 |
| Payment Terms: | T/T |

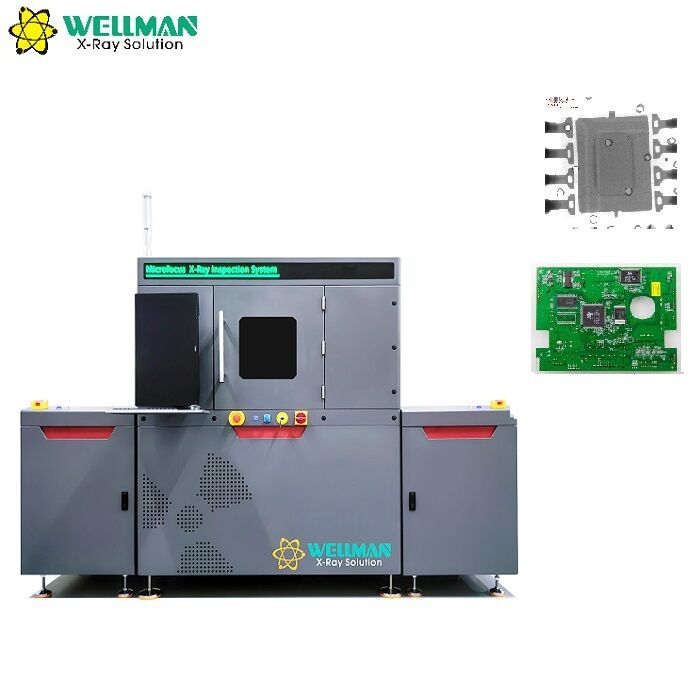

In-line Microfocus X-Ray Inspection System IL-3000 delivers advanced automated inspection capabilities with intuitive operation and comprehensive safety features.
| Type | Closed, microfocus |
| Max tube voltage | 90kV |
| Max tube current | 200μA |
| Focal spot size | 5μm |
| Function | Auto preheat |
| Brand | IRay |
| Effective area | 130mm * 130mm |
| Pixel size | 85μm |
| Resolution | 1536 * 1536 |
| Frame rate | 20fps |
| Tiltable angle | 60° |
| Transmission | Belt |
| Motor | Panasonic servo motor |
| Detectable area | Length 520mm, width 80-430mm adjustable |
| Max load | 10kg |
| Magnification | Geometry 200X | System 1500X |
| Inspection speed | Max 3.0s/point |
| Dimensions | 2600mm (L) * 1300mm (W) * 1800mm (H) |
| Host machine dimensions | 1400mm (L) * 1300mm (W) * 1800mm (H) |
| Weight | 2200kg |
| Power supply | AC110-220V 50/60HZ |
| Max power | 3000W |
| Industrial PC | I7 CPU, 16G RAM, 240GB SSD + 1T HDD |
| Displayer | 24" HDMI LCD |
| Function Module | Operation |
|---|---|
| X-ray tube control | Mouse-click operation with real-time voltage/current display and adjustment |
| Status bar | Visual indicators for interlock, pre-heat, and X-ray status |
| Image effect adjustment | Customizable brightness, contrast and gain settings |
| Product list | Save and recall inspection parameters for efficiency |
| Navigation window | Click-to-move functionality for precise positioning |
| Motion axis status | Real-time coordinate display |
| Inspection results | Clear display of measurement data with pass/fail indicators |
| Speed control | Adjustable movement speed for each axis |
