| Brand Name: | WELLMAN |
| Model Number: | Smart SMD Tower SMD-T |
| MOQ: | 1 |
| Payment Terms: | T/T |

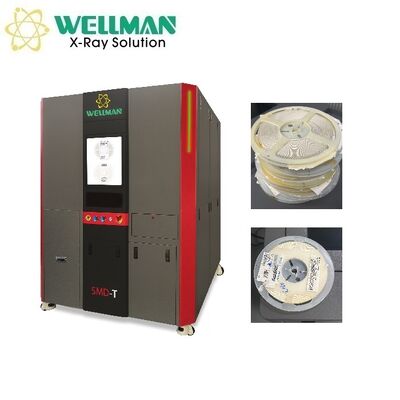

The SMD tower features batch automatic scanning and loading capabilities for efficient SMD component management.
| Parameter | Specification |
|---|---|
| In and out of storage | Code scanning | Barcode and QR code |
| Material type | SMD reel |
| Batch loading | Yes |
| Standard capacity | 750pcs (7" & 10mm reel) |
| Capacity after heightening | 1120pcs (7" & 10mm reel) |
| Single reel cycle time | 12-15s |
| Cycle time after heightening | 12-16s |
| Mini height | 5mm |
| Max height | 25mm (customizable) |
| Max weight | 3KG (customizable) |
| Multi-tower connection | Support |
| WMS management | Yes |
| Temperature and humidity warning | Support |
| Chip mounter communication | Optional |
| Management systems connection | MES, ERP, WMS etc. |
| Dimensions | 1450mm (L) × 1900mm (W) × 2050mm (H) |
| Height after heightening | 2700mm |
| Weight | 1500KG |
| Weight after heightening | 2000KG |
| Power supply | 220VAC, 16A |
| Power | 3000W |
| Industrial PC | I7 CPU, 8G RAM, 240G SSD+1T HDD |
| Displayer | 17" touch screen |
| Working temperature | 0 - 40°C |
| Working humidity | 10 - 85% |
| Noise | 50dB |
| Air pressure | 0.5-0.7mpa |
| N2 interface | Support |
| Function Category | Feature | Description |
|---|---|---|
| Warehouse Management System | Material management | Transform the unique code for new incoming material, add to the total material table |
| Tower setup | Set up new SMD tower and its locations | |
| Supplier info | Supplier info management, add, delete or search | |
| Customer Info | Customer info management, add, delete or search | |
| Inventory management | Intelligent management | Intelligent management of overall inventory |
| Inventory freeze | Freeze specific locations | |
| Inventory verification | Take stock and update the data of stored reels | |
| SMD Tower database | Location parameter table | Record the coordinate and size info of each location |
| Database Records | Current SMD tower table | Record the status of each location of the current SMD tower |
| In & out record | Record all records of material bin and material tray for traceability | |
| Operation record | Record initialization, power on and off, alarm and other operations | |
| Material bin function | Initialization | Initialize when the machine power on |
| Single reel in | Put the reel on the designated position, load it in the tower after scanning code | |
| Single reel out | Search for the specified reel, send it out | |
| Batch loading | Load the reels into the tower in batches automatically | |
| Place production orders | According to production demand, upload P/N or unique ID to system for analysis, then lock reels and inform SMD towers to unload | |
| Unload to order | After receiving production order from system, unload reels in batches | |
| Quality Control | Lock expired reels | Lock the expired reels, prevent them from entering the production process |
