| Brand Name: | WELLMAN |

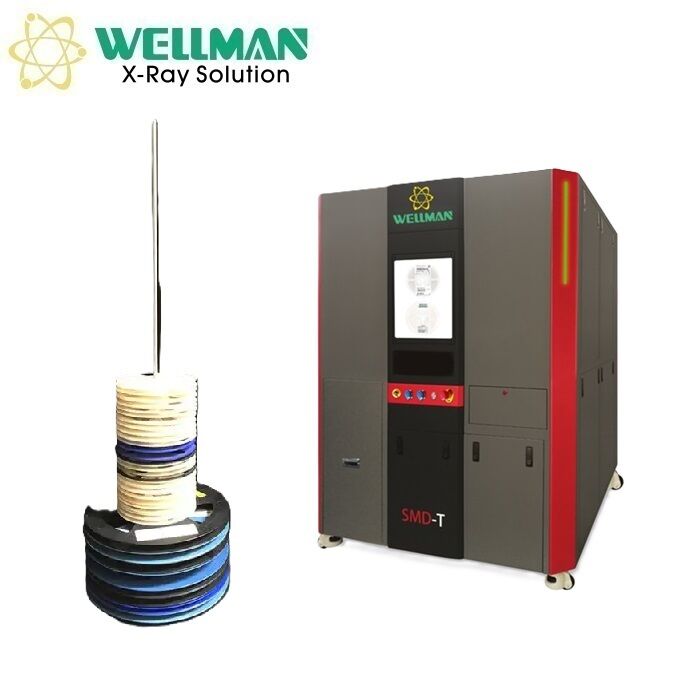

| Model Number: | Smart SMD Tower SMD-T |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Parameter | Specification |
|---|---|
| In and Out Storage | Code scanning with barcode and QR code support |
| Material Type | SMD reel |
| Batch Loading | Yes |
| Standard Capacity | 750pcs (7" & 10mm reel) |
| Capacity After Heightening | 1120pcs (7" & 10mm reel) |
| Single Reel Cycle Time | 12-15s |
| Cycle Time After Heightening | 12-16s |
| Minimum Height | 5mm |
| Maximum Height | 25mm (customizable) |
| Maximum Weight | 3KG (customizable) |
| Multi-tower Connection | Supported |
| WMS Management | Yes |
| Temperature and Humidity Warning | Supported |
| Chip Mounter Communication | Optional |
| Management Systems Connection | MES, ERP, WMS etc. |
| Dimensions | 1450mm (L) × 1900mm (W) × 2050mm (H) |
| Height After Heightening | 2700mm |
| Weight | 1500KG |
| Weight After Heightening | 2000KG |
| Power Supply | 220VAC, 16A |
| Power Consumption | 3000W |
| Industrial PC | I7 CPU, 8G RAM, 240G SSD+1T HDD |
| Display | 17" touch screen |
| Working Temperature | 0 - 40°C |
| Working Humidity | 10 - 85% |
| Noise Level | 50dB |
| Air Pressure | 0.5-0.7mpa |
| N2 Interface | Supported |
| Function Category | Feature | Description |
|---|---|---|
| Warehouse Management System | Material Management | Transform unique code for new incoming material and add to total material table |
| Tower Setup | Set up new SMD tower and its locations | |
| Supplier Info | Supplier information management with add, delete or search functions | |
| Customer Info | Customer information management with add, delete or search functions | |
| Inventory Management | Intelligent Management | Smart management of overall inventory |
| Inventory Freeze | Freeze specific locations as needed | |
| Inventory Verification | Take stock and update data of stored reels | |
| SMD Tower Database | Location Parameter Table | Record coordinate and size information of each location |
| Current SMD Tower Table | Record status of each location in current SMD tower | |
| In & Out Record | Record all material bin and tray transactions for traceability | |
| Operation Record | Log initialization, power cycles, alarms and other operations | |
| Material Bin Function | Initialization | Initialize when machine powers on |
| Single Reel In | Place reel on designated position, load into tower after scanning code | |
| Single Reel Out | Search for specified reel and send it out | |
| Batch Loading | Automatically load reels into tower in batches | |
| Place Production Orders | Upload P/N or unique ID to system for analysis, lock reels, and inform towers to unload | |
| Unload to Order | Receive production orders and unload reels in batches | |
| Quality Control | Lock Expired Reels | Lock expired reels to prevent them from entering production process |
