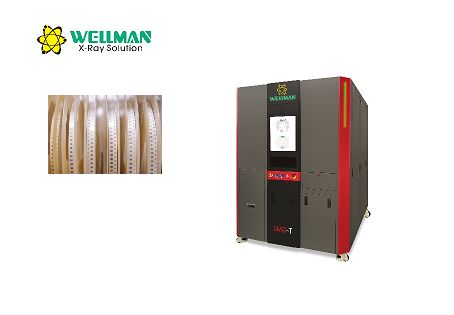

Ultra-high space utilization with standard capacity of 750 reels
Batch automatic scanning and loading, compatible with barcode/QR code technology
Fully automatic in and out storage supporting 7" to 15" reels
Integration with MES, ERP, WMS, and other management systems
Comprehensive SMD inventory management ensuring accuracy and preventing production interruptions
Controlled environment for SMD components with reel life monitoring
Automatic data backup and storage with quick search functionality via scanning
Customizable solutions with comprehensive software technical support
Height extension capability to 2.7 meters with expanded capacity to approximately 1,120 reels

Hardware Specifications

Parameter	Specification
In and Out Storage \| Code Scanning	Barcode and QR code
Material Type	SMD reel
Batch Loading	Yes
Standard Capacity	750pcs (7" & 10mm reel)
Capacity After Heightening	1120pcs (7" & 10mm reel)
Support Reel Size	7" to 13", 15" customizable
Single Reel Cycle Time	Approx. 15s
Cycle Time After Heightening	Approx. 16s
Mini Height	5mm
Max Height	25mm (customizable)
Max Weight	3KG (customizable)
Multi-tower Connection	Support
WMS Management	Support
Temperature and Humidity Warning	Support
Operation System	Windows 10 / Windows 11
Chip Mounter Communication	Optional
Management Systems Connection	MES, ERP, WMS etc.
Dimensions	1450mm (L) * 1900mm (W) * 2050mm (H)
Dimensions for 15" Reel	1650mm (L) * 2120mm (W) * 2050mm (H)
Height After Heightening	2750mm
Weight	1500KG
Weight After Heightening	2000KG
Power Supply	220VAC, 10A
Power	3000W
Industrial PC	I7 CPU, 8G RAM, 240G SSD+1T HDD
Displayer	17" touch screen
Working Temperature	0 - 40°C
Working Humidity	10 - 85%
Noise	50dB
Air Pressure	0.5-0.7mpa
N2 Interface	Support

Software Functionality

Warehouse Management System

Material management: Transform unique code for new incoming material, add to total material table
Tower setup: Set up new SMD tower and its locations
Supplier info: Supplier information management, add, delete or search
Customer Info: Customer information management, add, delete or search
Inventory management: Intelligent management of overall inventory
Inventory freeze: Freeze specific locations
Inventory: Take stock and update data of stored reels

Verification & Database

Scan and load: Scan the reel code and put into location
Location parameter table: Record coordinate and size info of each location
Current SMD tower table: Record status of each location of the current SMD tower
In & out record: Record all records of material bin and material tray for traceability
Operation record: Record initialization, power on/off, alarm and other operations

Material Bin Functions

Initialization: Initialize when the machine powers on
Single reel in: Put the reel on designated position, load into tower after scanning code
Single reel out: Search for specified reel, send it out
Batch loading: Load reels into tower in batches automatically
Place production orders: Upload P/N or unique ID to system for analysis, lock reels, and inform each SMD tower to unload
Unload to order: After receiving production order from system, unload reels in batches
Lock expired reels: Lock expired reels to prevent them from entering production process
