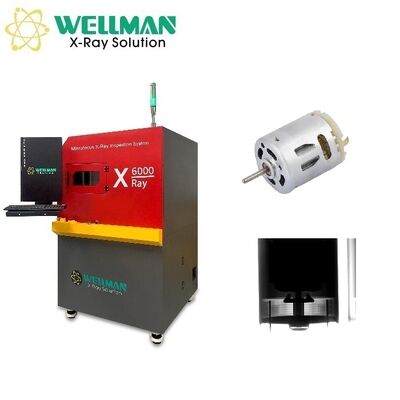

Microfocus X-Ray Inspection System X6000
Mouse-click operation to turn X-ray on/off. Real-time display of tube voltage and current with multiple adjustment methods.
Visual indication of interlock status, pre-heat status, and X-ray status with alternating red and green flashing.
Adjustable brightness, contrast and gain for optimal image quality and inspection results.
Save and recall inspection parameters for repeated product inspections to improve efficiency.
Camera-guided table positioning - click anywhere in the photo to move table to that position.
Automatic calculation of voids rate, solder ball area, circumference, and defect identification with NG/OK indicators.
| Function | Description |
|---|---|
| Distance | Measure vertical distance from point to baseline |
| Distance Rate | Calculate percentage ratio for through-hole soldering rate measurement |
| Angle | Measure angles between defined rays |
| Radius | Measure circumference, area and radius of circular components |
| Perimeter | Measure length, width and area of square components |
| Mode | Description |
|---|---|
| Manual Setting | Set custom inspection points for automated inspection and image capture |
| Array | Automated inspection of regular grid patterns with user-defined rows and columns |
| Automatic Identification | Software automatically identifies feature-based inspection points |
| Type | Closed, microfocus |
| Max tube voltage | 90kV |
| Max tube current | 200μA |
| Focal spot size | 5μm |
| Function | Auto preheat |
| Effective area | 130mm×130mm |
| Pixel size | 85μm |
| Resolution | 1536×1536 |
| Frame rate | 20fps |
| Size | 420mm×420mm |
| Detectable area | 400mm×400mm |
| Max load | 15kg |
| Magnification | Geometry: 150X | System: 1500X |
| Inspection speed | Max 3.0s/point |
| Dimensions | 1100mm (L)×1000mm (W)×1600mm(H) |
| Weight | 1000kg |
| Power supply | AC110-220V 50/60HZ |
| Max power | 1300W |
| Industrial PC | Intel I5 CPU, 8G RAM, 240GB SSD |
| Displayer | 24"HDMI LCD |
