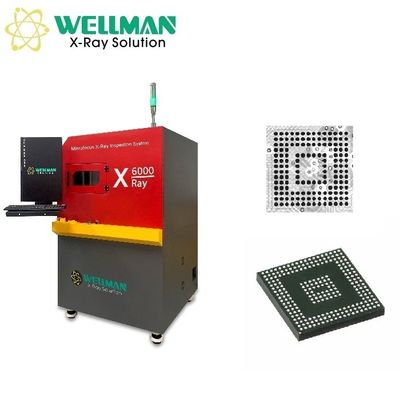

| Brand Name: | WELLMAN |
| Model Number: | X6000 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| X-ray Source | |
|---|---|
| Type | Closed, microfocus |
| Max tube voltage | 90kV |
| Max tube current | 200μA |
| Focal spot size | 5μm |
| Function | Auto preheat |
| Flat Panel Detector | |
| Effective area | 130mm×130mm |
| Pixel size | 85μm |
| Resolution | 1536×1536 |
| Frame rate | 20fps |
| Table Specifications | |
| Size | 420mm×420mm |
| Detectable area | 400mm×400mm |
| Max load | 15kg |
| Equipment Specifications | |
| Magnification | Geometry: 150X System: 1500X |
| Inspection speed | Max 3.0s/point |
| Dimensions | 1100mm (L)×1000mm (W)×1600mm(H) |
| Weight | 1000kg |
| Power supply | AC110-220V 50/60HZ |
| Max power | 1300W |
| Industrial PC | Intel I5 CPU, 8G RAM, 240GB SSD |
| Displayer | 24"HDMI LCD |
| Function Module | Description |
|---|---|
| X-ray Tube Control | Mouse-click X button to turn on/off X-ray. Real-time tube voltage and current display with adjustment via buttons, slider, or direct input. |
| Status Bar | Indicates interlock status, pre-heat status, and X-ray status by flashing alternately red and green. |
| Image Effect Adjustment | Adjust brightness, contrast and gain of the image freely to achieve optimal results. |
| Product List | Save inspection parameters (Z-axis position, brightness, contrast, gain) for direct recall when inspecting same products. |
| Navigation Window | After camera takes table photo, click anywhere to move table to selected position and display on screen. |
| Motion Axis Status | Display real-time coordinates. |
| Inspection Result | Measurement results (voids rate, distance, area, etc.) displayed in order. |
| Speed Control | Movement speed of each axis adjustable to slow, normal and fast. |
| Automatic Calculation | Click two points to determine rectangle. Software automatically finds and measures solder ball edge, pad, and internal voids. Provides voids rate, solder ball area, circumference, biggest void's rate, length and width with NG/OK indication. |
| Parameters Adjustment | Adjust grayscale threshold, pixel, contrast, size filtering and other parameters for accurate automatic calculation results. |
| Add Voids Manually | Draw polygon or free figure and calculate as void into void rate. |
| Save Parameters | Save parameters (grayscale threshold, pixel, contrast, size filtering) for direct recall when detecting same products. |
| Distance | Click A and B points to set baseline, then click C point to measure vertical distance from C point to baseline. |
| Distance Rate | Used to measure soldering rate of through-hole. Set one more point D than distance. Divide vertical distance from D point to baseline by vertical distance of C point to obtain percentage ratio. |
| Angle | Click A and B points to set baseline, then click C point to measure angle between BA and BC rays. |
| Perimeter | Used to measure square components. Click two points to determine square, measure length, width and area. |
| Radius | Used to measure round components such as solder balls. Click three points to determine circle and measure circumference, area and radius. |
| Manual Setting | Set any positions on table as inspection points, software automatically inspects and saves picture. |
| Array | For regular inspection points, set two inspection points and number of rows/columns, software automatically inspects each point and saves pictures. |
| Automatic Identification | For inspection points with obvious features, software automatically identifies positions, takes measurements, and saves image. |
