| Brand Name: | WELLMAN |

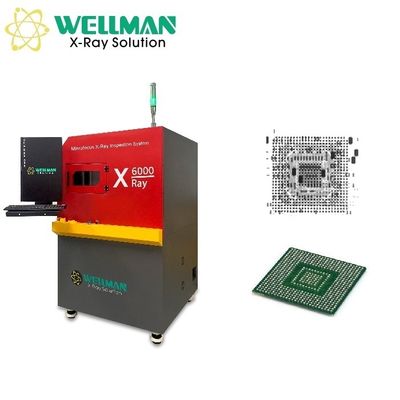

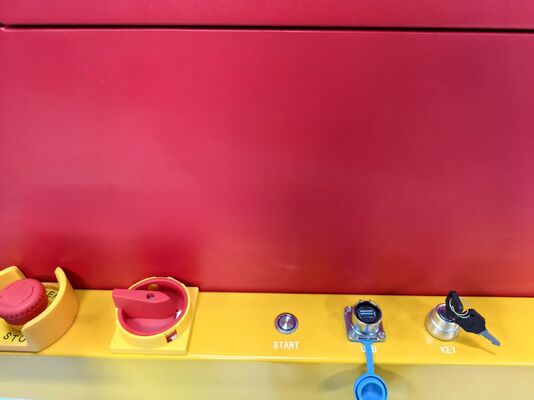

| Model Number: | X6000 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| X-ray Source | |
|---|---|
| Type | Closed, microfocus |
| Max tube voltage | 90kV |
| Max tube current | 200μA |
| Focal spot size | 5μm |
| Function | Auto preheat |
| Flat Panel Detector | |
| Effective area | 130mm×130mm |
| Pixel size | 85μm |
| Resolution | 1536×1536 |
| Frame rate | 20fps |
| Table Specifications | |
| Size | 420mm×420mm |
| Detectable area | 400mm×400mm |
| Max load | 15kg |
| Equipment Specifications | |
| Magnification | Geometry: 150X System: 1500X |
| Inspection speed | Max 3.0s/point |
| Dimensions | 1100mm (L)×1000mm (W)×1600mm(H) |
| Weight | 1000kg |
| Power supply | AC110-220V 50/60HZ |
| Max power | 1300W |
| Industrial PC | Intel I5 CPU, 8G RAM, 240GB SSD |
| Displayer | 24"HDMI LCD |
| Function | Description |
|---|---|
| Distance | Click the A and B points to set as the baseline, then click the C point to measure the vertical distance from the C point to the baseline. |
| Distance Rate | Mostly used to measure the soldering rate of the through-hole. Set one more point "D" than the distance. Divide the vertical distance from the D point to baseline by the vertical distance of the C point, to obtain the percentage ratio of the vertical distance of D to C. |
| Angle | Click the A and B points to set as the baseline, then click the C point to measure the angle between the BA and BC rays. |
| Perimeter | Mostly used to measure square components, click two points to determine a square, measure the length, width and area. |
| Radius | Mostly used to measure round components such as solder balls. Click three points to determine a circle and measure the circumference, area and radius. |
| Method | Description |
|---|---|
| Manual Setting | Users can set any positions on the table as inspection points, the software will automatically inspect and save the picture. |
| Array | For the regular inspection points, users only need to set two of the inspection points and the number of rows and columns, the software will automatically inspect each point and save pictures. |
| Automatic Identification | For inspection points with obvious features, the software automatically identifies the positions, takes measurements, and saves the image. |
