| Brand Name: | WELLMAN |

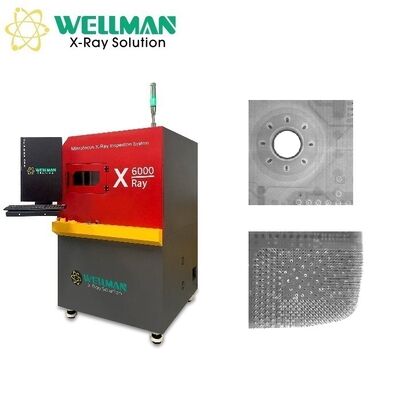

| Model Number: | X6000 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Function Module | Operation |
|---|---|
| X-ray tube control | Mouse click to turn X-ray on/off. Real-time display of tube voltage and current. Adjust via buttons, slider, or direct input. |
| Status bar | Displays interlock status, pre-heat status, and X-ray status with red/green flashing indicators. |
| Image effect adjustment | Adjust brightness, contrast and gain for optimal image quality. |
| Product list | Save and recall inspection parameters (Z-axis position, brightness, contrast, gain) for repeated product inspections. |
| Navigation window | Click anywhere in the table photo to move table to selected position. |
| Motion axis status | Real-time coordinate display. |
| Inspection result | Display measurement results (voids rate, distance, area, etc.) in order. |
| Speed control | Adjust movement speed of each axis to slow, normal, or fast. |
| Voids rate measurement | Automatic calculation of voids rate, solder ball area, circumference, largest void rate, dimensions, with NG/OK indicators. |
| Parameters adjustment | Adjust grayscale threshold, pixel, contrast, size filtering for accurate results. |
| Add voids manually | Draw polygons or free figures to include as voids in rate calculation. |
| Save parameters | Save measurement parameters for reuse with similar products. |
| Function | Description |
|---|---|
| Distance | Measure vertical distance from point to baseline. |
| Distance rate | Calculate percentage ratio for through-hole soldering rate measurement. |
| Angle | Measure angle between rays. |
| Radius | Measure circumference, area and radius of circular components. |
| Perimeter | Measure length, width and area of square components. |
| Method | Description |
|---|---|
| Manual setting | Set inspection points manually for automated inspection and image saving. |
| Array | Automatically inspect regular grid patterns with row/column specification. |
| Automatic identification | Automatically identify and inspect positions with distinctive features. |
| Type | Closed, microfocus |
| Max tube voltage | 90kV |
| Max tube current | 200μA |
| Focal spot size | 5μm |
| Function | Auto preheat |
| Effective area | 130mm×130mm |
| Pixel size | 85μm |
| Resolution | 1536×1536 |
| Frame rate | 20fps |
| Size | 420mm×420mm |
| Detectable area | 400mm×400mm |
| Max load | 15kg |
| Magnification Geometry | 150X |
| Magnification System | 1500X |
| Inspection speed | Max 3.0s/point |
| Dimensions | 1100mm (L)×1000mm (W)×1600mm(H) |
| Weight | 1000kg |
| Power supply | AC110-220V 50/60HZ |
| Max power | 1300W |
| Industrial PC | Intel I5 CPU, 8G RAM, 240GB SSD |
| Displayer | 24"HDMI LCD |
