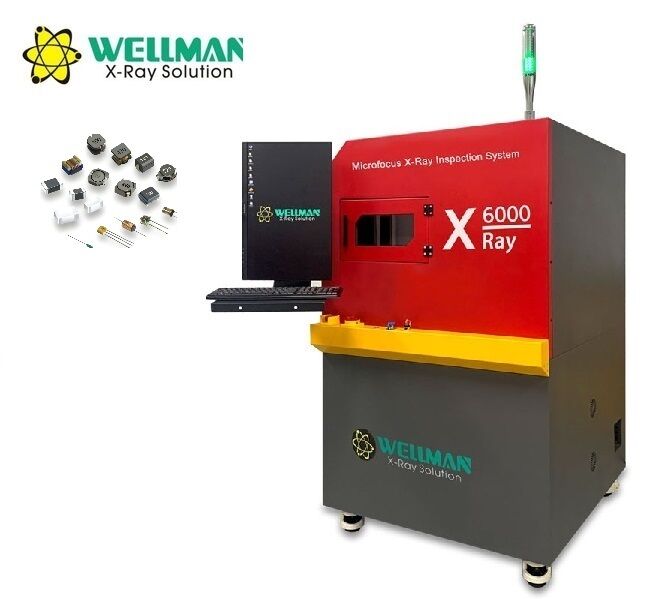

Safety Features

Emergency Stop: Located next to operation position for immediate power cutoff
Tube Protection: Software prevents leaving without closing X-ray tube
Radiation Leakage: No leakage (international standard: ≤1μSv/h)
Lead Glass Observation Window: Transparent lead glass window shields radiation to observe internal status
Window and Back Door Safety Interlock: X-ray tube powers off immediately when window or door opens

Software Functions

Keyboard and mouse can finish all operations

X-ray Tube Control

Using mouse to click the X button can turn on or off the X-ray.

Status Bar

Indicates the interlock status, pre-heat status, and X-ray status by flashing alternately red and green.

Image Effect Adjustment

The brightness, contrast and gain of the image can be adjusted freely to achieve a satisfactory result.

Product List

Users can save the inspection parameters such as Z-axis position, and can directly call the parameters.

Navigation Window

The table will move to the place you click and display on the screen.

Motion Axis Status

Display real-time coordinates.

Inspection Result

The measurement results (voids rate, distance, area, etc., set by users) display in order.

Speed Control

The movement speed of each axis can be adjusted to slow, normal and fast.

Voids Rate Measurement

Automatic calculation - Click on two points to determine a rectangle.

Parameters Adjustment

Users can adjust the grayscale threshold, pixel and other parameters to get accurate results of automatic calculation.

Add Voids Manually

Users can draw a polygon or a free figure and calculate it as a void into the void rate.

Save Parameters

Users can save parameters such as grayscale threshold and can directly call the parameters.

Other Measurement Functions

Function	Description
Distance	Click the A and B points to set as the baseline, then click the C point to measure the vertical distance
Distance Rate	Mostly used to measure the soldering rate of the through-hole
Angle	Click the A and B points to set as the baseline, then click the C point to measure the angle between the BA and BC rays
Radius	Click three points to determine a circle and measure the circumference, area and radius
Perimeter	Click two points to determine a square, measure the length, width and area

Automatic Inspection

Mode	Description
Manual Setting	Users can set any positions on the table as inspection points, the software will automatically inspect and save the picture
Array	Users only need to set two of the inspection points and the number of rows and columns
Automatic Identification	For inspection points with obvious features, the software automatically identifies the positions, takes measurements, and saves the image
