Electronics X Ray Machine Incorporating Microfocus X Ray Source with 90kV Maximum Voltage

Brand Name:	WELLMAN
Model Number:	X6000
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE FDA

Type:

Closed, Microfocus

Max Tube Voltage:

Max Tube Current:

200μA

Focal Spot Size:

Effective Area:

130mm*130mm

Highlight:

microfocus X ray machine 90kV

electronics X ray machine with warranty

X ray machine microfocus source

Product Description

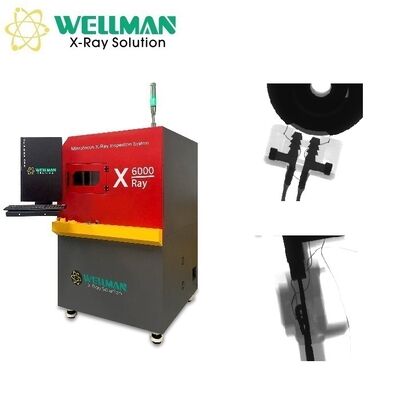

Electronics X-Ray Machine with Microfocus X-Ray Source

The Microfocus X-Ray Inspection System X6000 delivers high-precision inspection capabilities for electronic components and assemblies.

Working Principle

Key Advantages

Closed type X-ray tube with over 10,000 hours lifetime (maintenance-free)
New generation 5" HD digital flat panel detector (FPD)
Optional 360° rotary jig for multi-angle inspection
Automatic navigation window - table moves to clicked position
420×420mm table with 15KG load capacity
Speed adjustable 3-axis linkage system
Intuitive operation with only 2 hours training required
Programmable inspection procedures for automated batch inspection

Hardware Specifications

X-ray Source
Type	Closed, microfocus
Max tube voltage	90kV
Max tube current	200μA
Focal spot size	5μm
Function	Auto preheat

Flat Panel Detector
Effective area	130mm×130mm
Pixel size	85μm
Resolution	1536×1536
Frame rate	20fps

Table Specifications
Size	420mm×420mm
Detectable area	400mm×400mm
Max load	15kg

Equipment Specifications
Magnification	Geometry: 150X \| System: 1500X
Inspection speed	Max 3.0s/point
Dimensions	1100mm (L)×1000mm (W)×1600mm(H)
Weight	1000kg
Power supply	AC110-220V 50/60HZ
Max power	1300W
Industrial PC	Intel I5 CPU, 8G RAM, 240GB SSD
Displayer	24"HDMI LCD

Software Capabilities

Operation Interface

Keyboard and mouse can complete all operations

X-ray Tube Control

Mouse-click operation for X-ray on/off with real-time voltage and current display and adjustment

Status Monitoring

Visual indicators for interlock status, pre-heat status, and X-ray status

Image Adjustment

Adjustable brightness, contrast and gain for optimal image quality

Product Management

Save and recall inspection parameters for improved efficiency

Navigation Control

Click-to-move functionality for precise table positioning

Voids Rate Measurement

Automatic calculation of voids rate, area, circumference with NG/OK indicators

Measurement Tools

Distance, angle, perimeter, radius, and distance rate measurements

Automated Inspection

Manual setting, array, and automatic identification modes for batch inspection

Application Examples
