Electronics X Ray Machine with Large Table Size and High Load Capacity Suitable

Brand Name:	WELLMAN
Model Number:	X6000
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE FDA

Type:

Closed, Microfocus

Max Tube Voltage:

Max Tube Current:

200μA

Focal Spot Size:

Effective Area:

130mm*130mm

Highlight:

large table x ray machine

high load capacity x ray machine

electronics x ray machine with warranty

Product Description

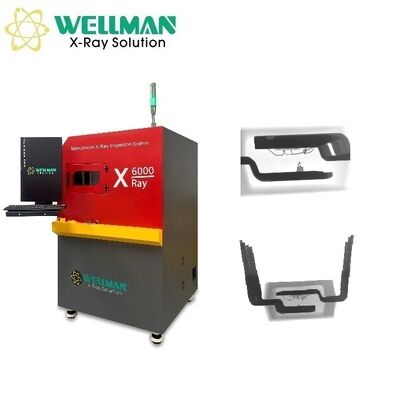

Electronics X-Ray Machine with Large Table Size and High Load Capacity

Product Overview

Microfocus X-Ray Inspection System X6000 - Advanced inspection solution for electronics manufacturing with superior performance and intuitive operation.

Hardware Specifications

X-ray Source
Type	Closed, microfocus
Max tube voltage	90kV
Max tube current	200μA
Focal spot size	5μm
Function	Auto preheat

Flat Panel Detector
Effective area	130mm×130mm
Pixel size	85μm
Resolution	1536×1536
Frame rate	20fps

Table Specifications
Size	420mm×420mm
Detectable area	400mm×400mm
Max load	15kg

Equipment Specifications
Magnification	Geometry: 150X \| System: 1500X
Inspection speed	Max 3.0s/point
Dimensions	1100mm (L)×1000mm (W)×1600mm(H)
Weight	1000kg
Power supply	AC110-220V 50/60HZ
Max power	1300W
Industrial PC	Intel I5 CPU, 8G RAM, 240GB SSD
Displayer	24"HDMI LCD

Software Capabilities

Function	Description
Operation	Keyboard and mouse can finish all operations
X-ray tube control	Mouse-click X button to turn on/off X-ray. Real-time display of tube voltage and current with adjustable settings via buttons, slider, or typing
Status bar	Indicates interlock status, pre-heat status, and X-ray status by flashing alternately red and green
Image effect adjustment	Adjust brightness, contrast and gain freely for optimal results
Product list	Save inspection parameters (Z-axis position, brightness, contrast, gain) for efficient reuse
Navigation window	Click anywhere in table photo to move table to selected position
Motion axis status	Display real-time coordinates
Inspection result	Display measurement results (voids rate, distance, area, etc.) in order
Speed control	Adjust movement speed of each axis (slow, normal, fast)
Voids rate measurement	Automatic calculation with rectangle selection, edge detection, and NG/OK indication
Parameters adjustment	Adjust grayscale threshold, pixel, contrast, size filtering for accurate results
Add voids manually	Draw polygon or free figure to calculate as void in void rate
Save parameters	Save detection parameters for efficient reuse with same products

Measurement Functions

Distance: Set baseline with A and B points, measure vertical distance from C point to baseline
Distance Rate: Measure soldering rate of through-hole using additional D point for percentage calculation
Angle: Set baseline with A and B points, measure angle between BA and BC rays
Perimeter: Measure square components with length, width and area calculation
Radius: Measure round components (solder balls) with circumference, area and radius calculation

Automatic Inspection

Manual setting: Set any positions as inspection points for automatic inspection and image saving
Array: Set two inspection points with rows/columns for automatic inspection of all points
Automatic identification: Software automatically identifies positions with obvious features for measurement and image saving

Key Advantages

Closed type X-ray tube with over 10,000 hours lifetime (maintenance-free)
New generation 5" HD digital flat panel detector (FPD)
Optional 360° rotary jig for multi-angle inspection
Automatic navigation window - table moves to clicked position
420×420mm table with 15KG load capacity
Speed adjustable 3-axis linkage system
Intuitive operation with only 2 hours training required
Programmable inspection procedures for automated batch inspection

Working Principle

Working principle diagram of X-Ray Inspection System

Application Examples

X-Ray Inspection System application example

Additional application example of X-Ray Inspection System
