BGA X Ray Machine Equipped with Japan Hamamatsu X Ray Tube for X Ray Inspection

Brand Name:	Wellman
Model Number:	X8800
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE FDA

Type:

Closed, Microfocus

Max Tube Voltage:

Max Tube Current:

200μA

Focal Spot Size:

Effective Area:

130mm*130mm

Highlight:

BGA X Ray Machine with Hamamatsu tube

X Ray inspection machine for BGA

Japan Hamamatsu X Ray tube machine

Product Description

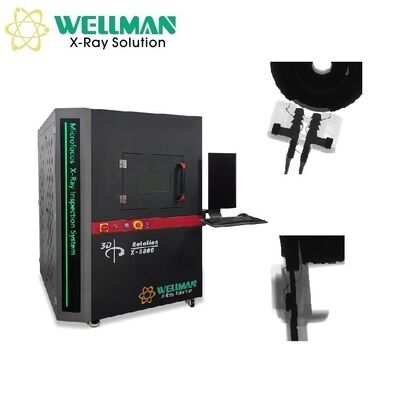

Microfocus X-Ray Inspection System X8800

Key Advantages

Japan Hamamatsu X-ray tube - World's best closed type X-ray tube with over 10,000 hours lifetime, maintenance-free operation
New generation 5" HD digital flat panel detector (FPD) with ±45° tilt and 360° rotation capability
Automatic navigation window - Table moves automatically to clicked positions
400×400mm table with 10KG load capacity
Speed adjustable 5-axis linkage system for precise positioning
Programmable inspection procedures for automated high-volume inspection
User-friendly operation - Quick defect identification with only 2 hours training required

Working Principle

Hardware Specifications

X-ray Source
Brand	Japan Hamamatsu
Type	Closed, microfocus
Max Tube Voltage	90KV
Max Tube Current	200μA
Focal Spot Size	5μm
Function	Auto preheat
Flat Panel Detector
Effective Area	130mm × 130mm
Pixel Size	85μm
Resolution	1536 × 1536
Frame Rate	20fps
Tiltable Angle	±45°
Rotation Angle	360°
Table
Size	400mm × 400mm
Detectable Area	400mm × 400mm
Max Load	10kg
Equipment
Magnification	Geometry: 200X	System: 1500X
Inspection Speed	Max 3.0s/point
Dimensions	1550mm(L) × 1600mm(W) × 1700mm(H)
Weight	1800kg
Power Supply	AC110-220V 50/60HZ
Max Power	1800W
Industrial PC	15 CPU, 8G RAM, 240GB SSD
Displayer	24" HDMI LCD

Safety Features

Radiation leakage - No leakage, meets international standard: ≤1μSv/h
Lead glass observation window - Transparent lead glass shields radiation while allowing internal status observation
Window and back door safety interlock - X-ray tube powers off immediately when window or back door is opened
Electromagnetic safety switch - Locks observation window when X-ray is active
Emergency stop - Located near operation position for immediate power cutoff
Tube protection - Prevents software exit without proper X-ray tube closure

Software Capabilities

Operation & Control

Complete keyboard and mouse operation
X-ray tube control with real-time voltage and current display
Status bar indicating interlock, pre-heat, and X-ray status
Adjustable image brightness, contrast, and gain
Product list for saving and recalling inspection parameters
Navigation window for automatic table positioning
Real-time motion axis status display
Inspection result organization and display
Adjustable axis movement speeds (slow, normal, fast)

Voids Rate Measurement

Automatic calculation - Measures solder ball edges, pads, and internal voids with NG/OK indication
Parameters adjustment - Grayscale threshold, pixel, contrast, and size filtering controls
Manual void addition - Polygon or free figure drawing for void calculation
Parameters saving - Store and recall measurement parameters for consistent results

Measurement Functions

Distance - Vertical distance measurement from point to baseline
Distance rate - Through-hole soldering rate measurement
Angle - Angle measurement between rays
Radius - Circular component measurement (solder balls)
Perimeter - Square component measurement

Automated Inspection

Manual setting - Custom inspection point positioning with automatic inspection and image saving
Array - Automated inspection of regular patterns using row and column settings
Automatic identification - Feature-based position recognition with automated measurement and image capture

Application Examples
