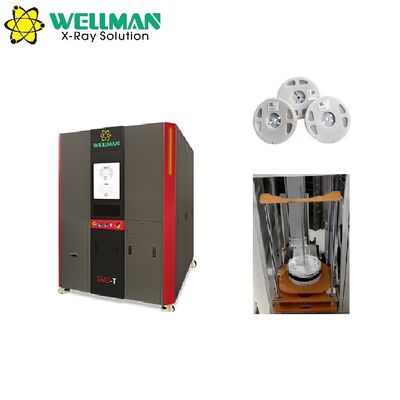

| Brand Name: | WELLMAN |
| Model Number: | SMD-T |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Parameter | Specification |
|---|---|
| In/Out Storage Code Scanning | Barcode and QR code |
| Material Type | SMD reel |
| Batch Loading | Yes |
| Standard Capacity | 750pcs (7" & 10mm reel) |
| Capacity After Heightening | 1120pcs (7" & 10mm reel) |
| Supported Reel Sizes | 7" to 13", 15" customizable |
| Single Reel Cycle Time | Approx. 15s |
| Cycle Time After Heightening | Approx. 16s |
| Minimum Height | 5mm |
| Maximum Height | 25mm (customizable) |
| Maximum Weight | 3KG (customizable) |
| Multi-tower Connection | Supported |
| WMS Management | Yes |
| Temperature & Humidity Warning | Supported |
| Operating System | Win 10 |
| Chip Mounter Communication | Optional |
| Management Systems Connection | MES, ERP, WMS etc. |
| Dimensions | 1450mm (L) × 1900mm (W) × 2050mm (H) |
| Dimensions for 15" Reel | 1650mm (L) × 2120mm (W) × 2050mm (H) |
| Height After Heightening | 2750mm |
| Weight | 1500KG |
| Weight After Heightening | 2000KG |
| Power Supply | 220VAC, 10A |
| Power Consumption | 3000W |
| Industrial PC | I7 CPU, 8G RAM, 240G SSD+1T HDD |
| Display | 17" touch screen |
| Working Temperature | 0 - 40°C |
| Working Humidity | 10 - 85% |
| Noise Level | 50dB |
| Air Pressure | 0.5-0.7mpa |
| N2 Interface | Supported |
| Function | Description |
|---|---|
| Material Management | Generate unique identification codes for newly-arrived materials and import records into the master material list |
| Tower Setup | Set up new SMD tower and its locations |
| Supplier Information | Supplier info management, add, delete or search |
| Customer Information | Customer info management, add, delete or search |
| Inventory Management | Intelligent management of overall inventory |
| Inventory Freeze | Freeze specific locations |
| Inventory Verification | Take stock and update data of stored reels |
| Scan Code and Load | Scan reel code and put into location |
| Function | Description |
|---|---|
| Location Parameter Table | Record coordinate and size info of each location |
| Current SMD Tower Table | Record status of each location of current SMD tower |
| In & Out Record | Record all material bin and material tray records for traceability |
| Operation Record | Record initialization, power on/off, alarm and other operations |
| Function | Description |
|---|---|
| Initialization | Initialize when machine powers on |
| Single Reel In | Put reel on designated position, load into tower after scanning code |
| Single Reel Out | Search for specified reel, send it out |
| Batch Loading | Load reels into tower in batches automatically |
| Place Production Orders | Upload part numbers or unique IDs to the system for data analysis, lock corresponding reels, and trigger unloading commands to SMD storage towers |
| Unload to Order | After receiving production order, unload reels in batches |
| Lock Expired Reels | Lock expired reels to prevent entry into production process |
