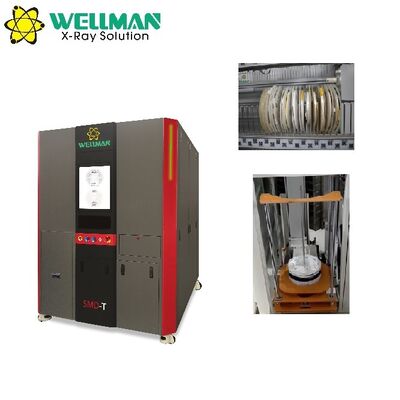

| Brand Name: | WELLMAN |
| Model Number: | SMD-T |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Parameter | Specification |
|---|---|
| In/Out Storage & Code Scanning | Barcode and QR code compatible |
| Material Type | SMD reel |
| Batch Loading | Supported |
| Standard Capacity | 750pcs (7" & 10mm reel) |
| Capacity After Heightening | 1120pcs (7" & 10mm reel) |
| Supported Reel Sizes | 7" to 13", 15" customizable |
| Single Reel Cycle Time | Approx. 15s |
| Cycle Time After Heightening | Approx. 16s |
| Minimum Height | 5mm |
| Maximum Height | 25mm (customizable) |
| Maximum Weight | 3KG (customizable) |
| Multi-tower Connection | Supported |
| WMS Management | Yes |
| Temperature & Humidity Warning | Supported |
| Operation System | Win 10 |
| Chip Mounter Communication | Optional |
| Management Systems Connection | MES, ERP, WMS, etc. |
| Standard Dimensions | 1450mm (L) × 1900mm (W) × 2050mm (H) |
| Dimensions for 15" Reel | 1650mm (L) × 2120mm (W) × 2050mm (H) |
| Height After Heightening | 2750mm |
| Weight | 1500KG |
| Weight After Heightening | 2000KG |
| Power Supply | 220VAC, 10A |
| Power Consumption | 3000W |
| Industrial PC | I7 CPU, 8G RAM, 240G SSD+1T HDD |
| Display | 17" touch screen |
| Working Temperature | 0 - 40°C |
| Working Humidity | 10 - 85% |
| Noise Level | 50dB |
| Air Pressure | 0.5-0.7mpa |
| N2 Interface | Supported |
| Function | Description |
|---|---|
| Material Management | Transform unique codes for new incoming materials and add to total material table |
| Tower Setup | Configure new SMD towers and their locations |
| Supplier Information | Maintain supplier information database with functions for adding, deleting and querying supplier records |
| Customer Information | Manage customer data with add, delete, and search capabilities |
| Inventory Management | Intelligent management of overall inventory |
| Inventory Freeze | Freeze specific locations as needed |
| Inventory Verification | Take stock and update stored reel data |
| Scan and Load | Scan reel codes and place into designated locations |
| Function | Description |
|---|---|
| Location Parameter Table | Log coordinate and dimension data for every storage slot |
| Current SMD Tower Table | Record status of each location in the current SMD tower |
| In & Out Records | Track all material bin and tray records for complete traceability |
| Operation Records | Log initialization, power cycles, alarms, and other operations |
| Function | Description |
|---|---|
| Initialization | System initialization upon machine power on |
| Single Reel In | Place the reel at the designated station; the system will load it into the tower upon completing code scanning |
| Single Reel Out | Search for specified reel and send it out |
| Batch Loading | Automatically load reels into tower in batches |
| Place Production Orders | Upload P/N or unique ID for analysis, lock reels, and notify SMD towers to unload |
| Unload to Order | Unload reels in batches upon receiving production orders |
| Lock Expired Reels | Lock expired reels to prevent entry into production process |
