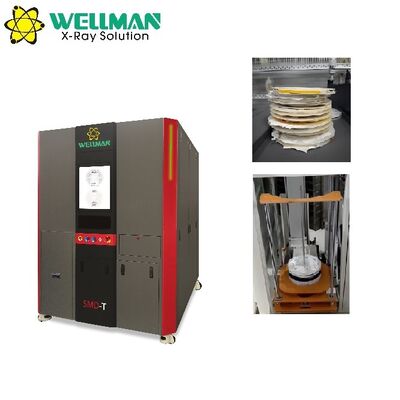

Advanced automated storage solution designed for SMD reel management in PCB SMT production warehouses, featuring comprehensive inventory tracking and system integration capabilities.

Key Advantages

Ultra-high space utilization with standard capacity of approximately 750 reels
Batch automatic scanning and loading compatible with barcode/QR code technology
Fully automated storage operations supporting 7" to 15" reels
Seamless integration with MES, ERP, WMS, and other management systems
Comprehensive SMD inventory management ensuring accuracy and preventing production interruptions
Controlled environment monitoring with reel lifecycle tracking
Automatic data backup and storage with quick search functionality
Customizable solutions with comprehensive software technical support
Expandable capacity up to approximately 1120 reels with height extension to 2.7 meters

Workflow Process

Loading & Unloading Methods

Technical Specifications

Parameter Category	Specification Details
In and Out of Storage	Code scanning with barcode and QR code compatibility
Material Type	SMD reel
Batch Loading	Yes
Reel Capacity	Standard: 750pcs (7" & 10mm reel) Extended: 1120pcs (7" & 10mm reel)
Supported Reel Sizes	7" to 13", 15" customizable
Cycle Time	Single reel: Approx. 15s After heightening: Approx. 16s
Reel Dimensions	Minimum height: 5mm Maximum height: 25mm (customizable) Maximum weight: 3KG (customizable)
System Features	Multi-tower connection support WMS management Temperature and humidity warning Windows 10 operating system Chip mounter communication (optional) MES, ERP, WMS integration
Equipment Dimensions	Standard: 1450mm (L) × 1900mm (W) × 2050mm (H) 15" design: 1650mm (L) × 2120mm (W) × 2050mm (H) Extended height: 2750mm
Weight	Standard: 1500KG After heightening: 2000KG
Power Requirements	220VAC, 10A Power consumption: 3000W
Industrial PC	I7 CPU, 8G RAM, 240G SSD + 1T HDD
Display	17" touch screen
Operating Conditions	Temperature: 0-40°C Humidity: 10-85% Noise: 50dB Air pressure: 0.5-0.7mpa N2 interface: Supported

Software Functionality

Function Category	Capabilities
Warehouse Management System	Material management with unique code transformation Tower setup and location configuration Supplier and customer information management Intelligent inventory management with freeze capabilities Inventory verification and data updating Scan code loading functionality
SMD Tower Database	Location parameter table with coordinate and size information Current SMD tower status tracking In & out records for material traceability Operation records including initialization and alarms
Material Bin Functions	Automatic initialization on power-on Single reel in/out operations Batch loading automation Production order placement and analysis Batch unloading for production orders Expired reel locking to prevent production use
