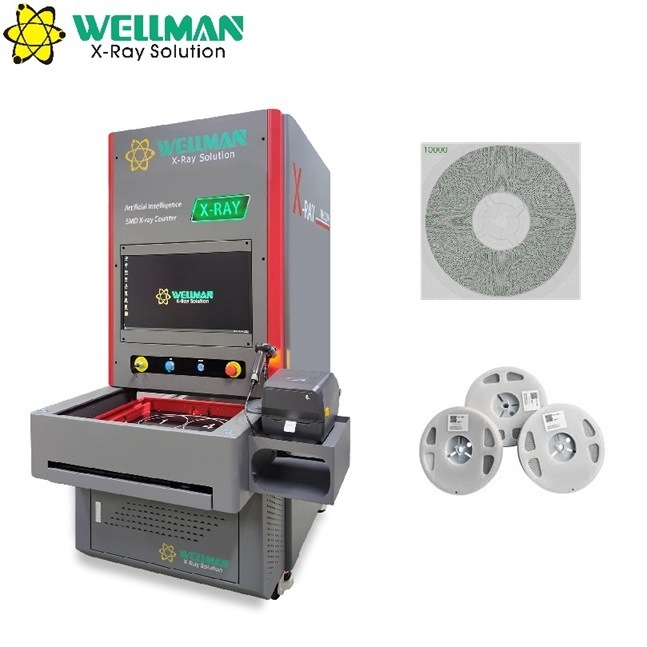

| Brand Name: | WELLMAN |
| Model Number: | XC-01 |
| MOQ: | 1 |
| Price: | 20000-30000 USD |
| Payment Terms: | T/T |
| Type | Integrated, microfocus |
| Max tube voltage | 80kV |
| Max tube current | 700μA |
| Focal spot size | 30μm |
| Type | Super definition digital FPD |
| Effective area | 430mm * 430mm |
| Pixel size | 139μm |
| Resolution | 3072 * 3072 |
| Max size | 17" (430mm) |
| Max thickness | 88mm |
| Min parts size | 01005 |
| Speed | 7-10s |
| Accuracy | 01005 ≥ 99.98%, 0201 & above ≥ 99.99% |
| Dimensions | 1000mm (L) * 1300mm (W) * 1820mm (H) |
| Weight | 580kg |
| Power supply | AC110-220V 50/60HZ |
| Max power | 800W |
| Industrial PC | I7 CPU, 16G RAM, 256G SSD+4T HDD |
| Displayer | 24" HDMI LCD |
| Radiation leakage | No leakage, international standard: ≤1μSv/h |
| Back door safety interlock | Automatic X-ray power off when door opens |
| Anti-pinch protection | Safety light curtain covers entire drawer |
| Emergency stop | Front-mounted emergency power off button |
| Parts Size | Parts Size | Quantity | Accuracy | Speed |
|---|---|---|---|---|
| 7" (180mm) | 01005 | 40000 | 99.98% | 9-10s |
| 7" (180mm) | 0201 | 20000 | 99.99% | 8-9s |
| 7" (180mm) | 0402 | 10000 | 99.99% | 7-8s |
| 7" (180mm) | 0603 | 5000 | 99.99% | 7-8s |
| 10" (254mm) | 1206 | 5000 | 99.99% | 7-8s |
| 15" (380mm) | 1206 | 10000 | 99.99% | 7-8s |
