| Brand Name: | WELLMAN |
| Model Number: | XC01 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | Worldwide supply |

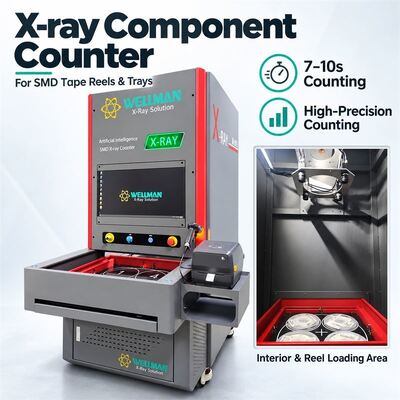

This industrial X-ray component counter delivers fast 7–10 second high-accuracy counting for 01005 and larger SMD components. It supports SMD tape reels and trays up to 17 inches (430 mm), and is equipped with a super-definition flat panel detector, safety interlock, and anti-pinch protection for reliable warehouse inventory operations.
| Type | Super definition digital FPD |
|---|---|
| Effective Area | 430 mm × 430 mm |
| Pixel Size | 139 μm |
| Resolution | 3072 × 3072 |
| Type | Closed, microfocus |
|---|---|
| Max Tube Voltage | 80 kV |
| Max Tube Current | 700 μA |
| Focal Spot Size | 30 μm |
| Max Size | 17" (430 mm) |
|---|---|
| Max Thickness | 90 mm |
| Min Parts Size | 01005 |
| Speed | 7–10 s |
| Accuracy | 99.99% |
| Dimensions | 1000 mm (L) × 1300 mm (W) × 1820 mm (H) |
|---|---|
| Weight | 520 kg |
| Power Supply | AC110–220 V, 50/60 Hz |
| Max Power | 800 W |
| Industrial PC | i7 CPU, 16 GB RAM, 256 GB SSD + 4 TB HDD |
| Display | 24" HDMI LCD |
| Radiation Leakage | No leakage |
|---|---|
| Back Door Safety Interlock | X-ray tube powers off immediately when back door opens |
| Anti-pinch | Safety light curtain covers entire drawer; stops immediately when obstruction detected |
| Emergency Stop | Front-mounted emergency stop button for immediate power cutoff |
The counting system uses an advanced deep learning algorithm that automatically identifies components without manual binding. It learns component features including aspect ratio, corner angles, internal-external slope, and image deformation to improve accuracy with continued use.
| Reel Size | Parts Size | Quantity | Accuracy | Speed |
|---|---|---|---|---|
| 7" (180 mm) | 01005 | 40000 | 99.98% | 9–10 s |
| 7" (180 mm) | 0201 | 20000 | 99.99% | 8–9 s |
| 7" (180 mm) | 0402 | 10000 | 99.99% | 7–8 s |
| 7" (180 mm) | 0603 | 5000 | 99.99% | 7–8 s |
| 10" (254 mm) | 1206 | 5000 | 99.99% | 7–8 s |
| 15" (380 mm) | 1206 | 10000 | 99.99% | 7–8 s |
All machines connect to a cloud database for data and image upload. The system automatically downloads the latest algorithm updates. Engineers optimize the algorithm using real-world data, continuously improving accuracy and component coverage.
A: Yes, our label templates support customization to match your factory's required format.
