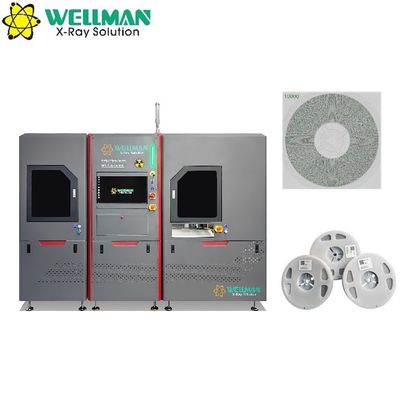

| Brand Name: | WELLMAN |
| Model Number: | IL-1000 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| X-ray Source | |
|---|---|
| Type | Microfocus |
| Max tube voltage | 80kV |
| Max tube current | 700μA |
| Focal spot size | 30μm |
| Flat Panel Detector | |
|---|---|
| Type | Super definition digital FPD |
| Effective area | 430mm*430mm |
| Pixel size | 139μm |
| Resolution | 3072*3072 |
| Reel/Tray Counting | |
|---|---|
| Max size (Auto mode) | 15" (380mm) |
| Max thickness (Auto mode) | 50mm |
| Min parts size | 01005 |
| Speed | 12-15s |
| Accuracy (01005) | ≥ 99.98% |
| Accuracy (0201 & above) | ≥ 99.99% |
| Dimensions | 2700mm (L) * 1400mm (W) * 1900mm (H) |
| Weight | 3000kg |
| Power supply | AC110-220V 50/60HZ |
| Max power | 4800W |
| Industrial PC | I7 CPU, 16G RAM, 256G SSD+4T HDD |
| Displayer | 24" HDMI LCD |
| Reel size | Parts size | Quantity | Accuracy | Speed |
|---|---|---|---|---|
| 7" (180mm) | 01005 | 10000 | 99.98% | 12-13s |
| 7" (180mm) | 0201 | 10000 | 99.99% | 11-12s |
| 7" (180mm) | 0402 | 10000 | 99.99% | 11-12s |
| 7" (180mm) | 0603 | 5000 | 99.99% | 10-11s |
| 10" (254mm) | 1206 | 5000 | 99.99% | 10-11s |
| 15" (380mm) | 1206 | 10000 | 99.99% | 11-12s |
