| Brand Name: | WELLMAN |
| Model Number: | Smart SMD Tower SMD-T |
| MOQ: | 1 |
| Payment Terms: | T/T |

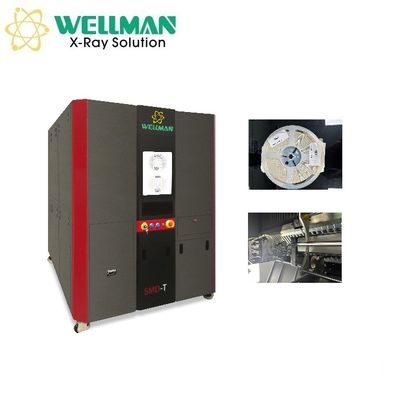

Smart SMD Tower SMD-T
Workflow
Hardware Specifications
| Feature | Specification |
|---|---|
| Storage Operation | Automatic in/out with barcode/QR code scanning |
| Material Type | SMD reel |
| Batch Loading | Supported |
| Standard Capacity | 750 reels (7" & 10mm reel) |
| Expanded Capacity | 1120 reels (7" & 10mm reel) |
| Cycle Time | 12-15s (standard), 12-16s (expanded) |
| Reel Dimensions | 5mm min height, 25mm max height (customizable) |
| Max Weight | 3KG (customizable) |
| System Features | Multi-tower connection, WMS management, temperature/humidity monitoring |
| Physical Dimensions | 1450mm (L) * 1900mm (W) * 2050mm (H), expandable to 2700mm height |
| Weight | 1500KG (standard), 2000KG (expanded) |
| Power Requirements | 220VAC, 16A, 3000W |
Software Capabilities
| Function Category | Features |
|---|---|
| Warehouse Management |
Material Management
Transform unique codes for new materials and update master inventory
Tower Configuration
Setup new SMD towers and location mapping
Supplier/Customer Info
Comprehensive management of supplier and customer data
|
| Inventory Control |
Intelligent inventory management with location freezing
Inventory verification and automatic updates
Scan-and-load functionality for reel placement
|
| Database Functions |
Location parameter recording and status tracking
Complete in/out records for full traceability
Operation logging for all system activities
|
| Material Handling |
System initialization on power-up
Single reel in/out operations with scanning
Batch loading and production order processing
Expired reel locking to prevent production use
|
