| Brand Name: | WELLMAN |
| Model Number: | XC-01 |
| MOQ: | 1 |
| Price: | 20000-30000 USD |
| Payment Terms: | T/T |

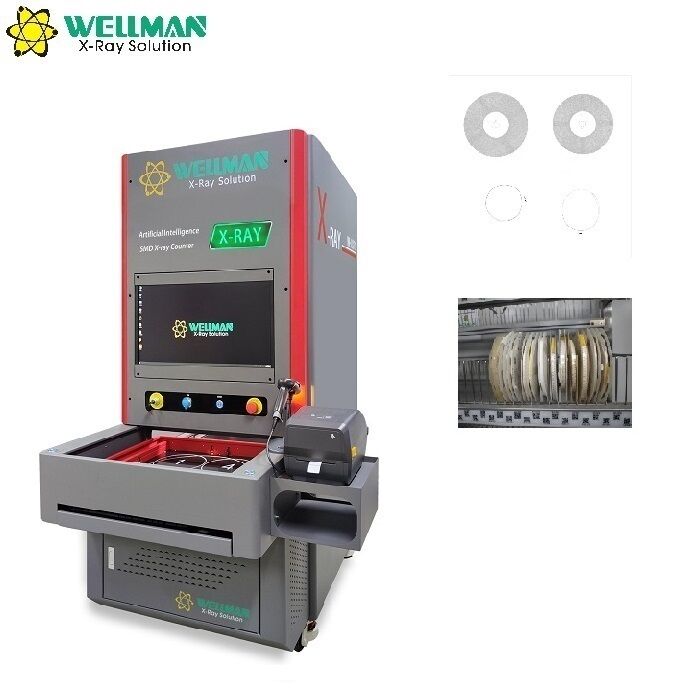

Wellman Microfocus X-Ray Component Counter XC-01 featuring 80kV Maintenance-Free Tube with advanced AI counting capabilities.
| Type | Integrated, microfocus |
|---|---|
| Max tube voltage | 80kV |
| Max tube current | 700μA |
| Focal spot size | 30μm |
| Type | Super definition digital FPD |
|---|---|
| Effective area | 430mm * 430mm |
| Pixel size | 139μm |
| Resolution | 3072 * 3072 |
| Max reel size | 17" (430mm) |
|---|---|
| Max thickness | 88mm |
| Min parts size | 01005 |
| Counting speed | 7-10 seconds |
| Accuracy | 01005 ≥ 99.98% | 0201 & above ≥ 99.99% |
| Reel size | Parts size | Quantity | Accuracy | Speed |
|---|---|---|---|---|
| 7" (180mm) | 01005 | 40000 | 99.98% | 9-10s |
| 7" (180mm) | 0201 | 20000 | 99.99% | 8-9s |
| 7" (180mm) | 0402 | 10000 | 99.99% | 7-8s |
| 7" (180mm) | 0603 | 5000 | 99.99% | 7-8s |
| 10" (254mm) | 1206 | 5000 | 99.99% | 7-8s |
| 15" (380mm) | 1206 | 10000 | 99.99% | 7-8s |
Our counting software utilizes a powerful artificial intelligence deep learning algorithm that automatically identifies components without manual binding. The system continuously improves by learning from counted component data including:
Each Wellman X-ray counter connects to our cloud database, automatically uploading machine data and images while downloading the latest database updates. Our engineering team continuously optimizes algorithms using collected data, delivering regular updates to enhance counting accuracy and expand component coverage.
