2.1 X-ray tube: extended service life, maintenance-free
2.2 17" ultra-high definition digital flat panel detector (FPD)
2.3 Ultra-fast counting: <10s for 4×7" reels or 1×15" (380mm) reel
2.4 Supports max 17" (430mm) reel/tray with moisture barrier bag
2.5 Free AI deep learning algorithm updates; compatible with MES/ERP/WMS
2.6 Auto synchronous code scanning & counting; auto label printing on reel removal
2.7 No single/multi-reel mode switching; auto label printing for single-reel counting
2.8 Work order number support; counting record query and statistics available

3. Equipment Parameters

X-ray source
Type	Closed, microfocus
Focal spot size	30μm
Max tube voltage	80kV
Max tube current	700μA
Flat panel detector
Type	Super definition digital FPD
Effective area	430mm*430mm
Pixel size	139μm
Resolution	3072*3072
Reel/tray counting
Max thickness	88mm
Max size	17” (430mm)
Min parts size	01005
Speed	7-10s
Accuracy	01005 ≥ 99.98%, 0201 & above ≥ 99.99%
Equipment
Dimensions	1000mm (L) * 1300mm (W) * 1820mm (H)
Weight	580kg
Power supply	AC110-220V 50/60HZ
Max power	800W
Industrial PC	I7 CPU, 16G RAM, 256G SSD+4T HDD
Display	24” HDMI LCD
Other functions
Auto code scanning	Barcode and QR code
Label printing	printing label when user takes out a reel
Counting record	Inquiry by time range, work order number
Management system connection	MES, ERP, WMS etc.
Mode switching	No need to switch single/multi reel mode
Work order no.	Support work order number recording
Safety
Radiation leakage	No leakage, international standard: ≤1μSv/h.
Back door safety interlock	Once users open the back door, X-ray tube will power off .
Anti-pinch	the drawer will stop immediately when something enters
Emergency stop	In front of the operation position, press to power off

4. Detailed Description of Main Advantages

4.1 Artificial intelligence deep learning algorithm

The algorithm can learn the counted component data, such as:

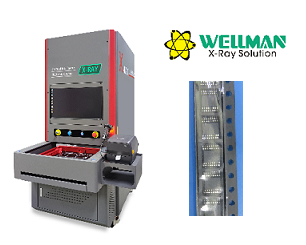

X-Ray Parts Counter with 99.99% Accuracy and 17" Ultra-High Definition Digital FPD for Ultra-Fast Counting 1

4.2 Speed and Accuracy

The counting time and accuracy will be faster and more accurate as our algorithm update.

Reel size	Parts size	Quantity	Accuracy	Speed
7” (180mm)	01005	40000	99.98%	9-10s
7” (180mm)	0201	20000	99.99%	8-9s
7” (180mm)	0402	10000	99.99%	7-8s
7” (180mm)	0603	5000	99.99%	7-8s
10” (254mm)	1206	5000	99.99%	7-8s
15” (380mm)	1206	10000	99.99%	7-8s

4.3 Cloud database

Every Wellman X-ray counter can connect to our cloud database.

X-Ray Parts Counter with 99.99% Accuracy and 17" Ultra-High Definition Digital FPD for Ultra-Fast Counting 2

5. Sample images

X-Ray Parts Counter with 99.99% Accuracy and 17" Ultra-High Definition Digital FPD for Ultra-Fast Counting 3

X-Ray Parts Counter with 99.99% Accuracy and 17" Ultra-High Definition Digital FPD for Ultra-Fast Counting 5

X-Ray Parts Counter with 99.99% Accuracy and 17" Ultra-High Definition Digital FPD for Ultra-Fast Counting 7
