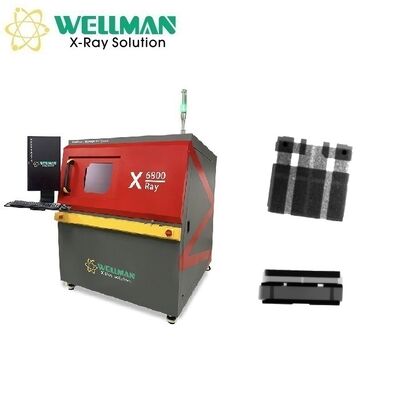

PCB X Ray Machine Featuring Automatic Navigation Window and 530 by 530 Millimeter Table

Brand Name: WELLMAN
Model Number: X6800
MOQ: 1
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE ，FDA
Type:
Closed,microfocus
Effective Area:
130mm*130mm
Pixel Size:
85μm
Resolution:
1536*1536
Dimensions:
1360mm (L) * 1365mm (W) * 1730mm (H）
Highlight:

PCB X Ray machine with automatic navigation

,

PCB X Ray machine 530x530mm table

,

PCB X Ray machine for inspection

Product Description
PCB X-Ray Machine with Automatic Navigation Window
Microfocus X-Ray Inspection System X6800 featuring 530×530mm table with 10KG load capacity
Key Advantages
  • Closed type X-ray tube with over 10,000 hours lifetime, maintenance-free operation
  • New generation 5" HD digital flat panel detector (FPD)
  • FPD tilts 60° without sacrificing magnification
  • Automatic navigation window - table moves to clicked position
  • 530×530mm table with 10KG load capacity
  • Speed adjustable 5-axis linkage system
  • Programmable inspection procedures for automated batch inspection
  • Easy operation with quick defect detection - only 2 hours training required
Working Principle
PCB X Ray Machine Featuring Automatic Navigation Window and 530 by 530 Millimeter Table 0
Hardware Specifications
X-ray Source
TypeClosed, microfocus
Maximum Tube Voltage90kV
Maximum Tube Current200μA
Focal Spot Size5μm
FunctionAuto preheat
Flat Panel Detector
Effective Area130mm×130mm
Pixel Size85μm
Resolution1536×1536
Frame Rate20fps
Tiltable Angle60°
Table Specifications
Size530mm×530mm
Detectable Area500mm×500mm
Maximum Load10kg
Equipment Parameters
MagnificationGeometry 200X | System 1500X
Inspection SpeedMaximum 3.0s/point
Dimensions1360mm (L)×1365mm (W)×1730mm (H)
Weight1200kg
Power SupplyAC110-220V 50/60HZ
Maximum Power1500W
Industrial PCI5 CPU, 8G RAM, 500GB SSD
Display24" HDMI LCD
Safety Features
Radiation LeakageNo leakage, meets international standard: ≤1μSv/h
Lead Glass Observation WindowTransparent lead glass window shields radiation for internal status observation
Window and Back Door Safety InterlockX-ray tube powers off immediately when window or back door opens
Electromagnetic Safety SwitchLocks when X-ray is active, preventing window opening
Emergency StopLocated near operation position for immediate power cutoff
Tube ProtectionSoftware prevents leaving without closing X-ray tube
Software Capabilities
Core Functions
  • Complete keyboard and mouse operation
  • Mouse-click X-ray tube control with real-time voltage/current display
  • Status bar indicating interlock, pre-heat, and X-ray status
  • Adjustable image brightness, contrast and gain
  • Product list for saving and recalling inspection parameters
  • Navigation window with click-to-move table positioning
  • Real-time motion axis coordinate display
  • Inspection result organization and display
  • Adjustable axis movement speeds (slow, normal, fast)
Voids Rate Measurement
  • Automatic calculation of solder ball voids rate, area, circumference
  • NG/OK indication with red/green color coding
  • Adjustable grayscale threshold, pixel, contrast, and size filtering
  • Manual void addition via polygon or free-form drawing
  • Parameter saving for consistent product inspection
Additional Measurement Functions
  • Distance measurement with baseline and point calculation
  • Distance rate for through-hole soldering rate measurement
  • Angle measurement between baseline rays
  • Radius measurement for circular components with circumference and area
  • Perimeter measurement for square components with length, width and area
Application Examples
PCB X Ray Machine Featuring Automatic Navigation Window and 530 by 530 Millimeter Table 1 PCB X Ray Machine Featuring Automatic Navigation Window and 530 by 530 Millimeter Table 2
