| Brand Name: | WELLMAN |

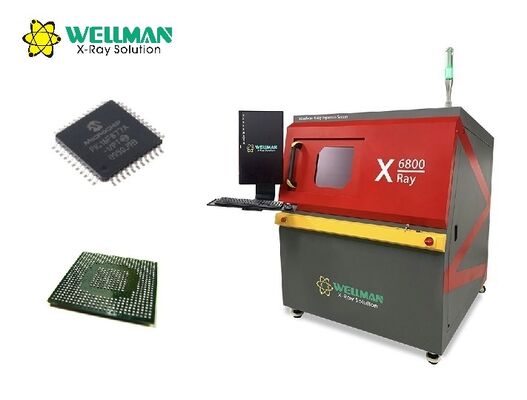

| Model Number: | X-Ray X-6800 |
| Payment Terms: | T/T |
| Component | Parameter | Specification |
|---|---|---|
| X-ray Source | Type | Closed, microfocus |
| Max Tube Voltage | 90kV (optional) | |
| Max Tube Current | 200μA | |
| Focal Spot Size | 5μm (optional) | |
| Flat Panel Detector | Effective Area | 130mm × 130mm |
| Pixel Size | 85μm | |
| Resolution | 1536 × 1536 | |
| Frame Rate | 20fps | |
| Tiltable Angle | 60° (optional) | |
| Table | Size | 530mm × 530mm |
| Detectable Area | 500mm × 500mm | |
| Max Load | 10kg | |
| Equipment | Magnification | Geometry 200X | System 1500X |
| Inspection Speed | Max 3.0 s/point | |
| Dimensions | 1360mm (L) × 1365mm (W) × 1730mm (H) | |
| Weight | 1200kg | |
| Power Supply | AC110-220V 50/60HZ | |
| Max Power | 1500W | |
| Industrial PC | I5 CPU, 8G RAM, 500GB SSD | |
| Function Module | Description |
|---|---|
| X-ray Tube Control | Mouse-click activation with real-time voltage/current display and adjustable settings |
| Image Effect Adjustment | Customizable brightness, contrast and gain for optimal imaging results |
| Product List Management | Save and recall inspection parameters for consistent, efficient repeat inspections |
| Navigation Window | Click-to-move functionality for precise table positioning |
| Voids Rate Measurement | Automatic calculation of solder ball voids, area, circumference with NG/OK indicators |
| Precision Measurement Tools | Distance, angle, radius, perimeter and area measurements with customizable parameters |
| Automated Inspection | Manual point setting, array pattern generation, and automatic feature recognition |
