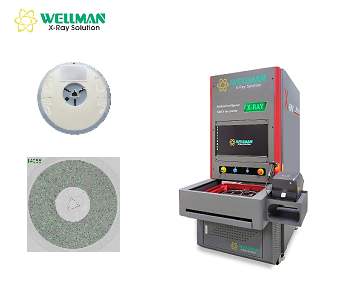

The Automatic SMD X-Ray Reel Counting Machine utilizes advanced X-ray technology to accurately count components on reels through non-destructive scanning.

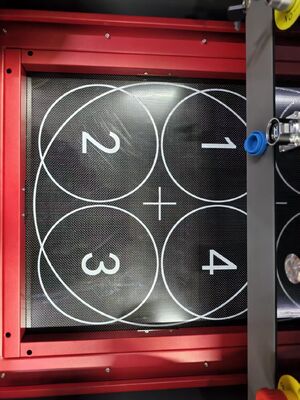

| Type | Super definition digital FPD |
|---|---|
| Effective Area | 430mm × 430mm |
| Pixel Size | 139μm |
| Resolution | 3072 × 3072 |
| Type | Closed, microfocus |
|---|---|
| Max Tube Voltage | 80kV |
| Max Tube Current | 700μA |
| Focal Spot Size | 30μm |
| Max Size | 17" (430mm) |
|---|---|
| Max Thickness | 88mm (supports customizable) |
| Min Parts Size | 01005 |
| Speed | 7-10s |
| Accuracy | 99.99% |
| Dimensions | 1000mm (L) × 1300mm (W) × 1820mm (H) |
|---|---|
| Weight | 520kg |
| Power Supply | AC110-220V 50/60HZ |
| Max Power | 800W |
| Industrial PC | I7 CPU, 16G RAM, 256G SSD+4T HDD |
| Display | 24" HDMI LCD |
| Radiation Leakage | No leakage |
|---|---|
| Back Door Safety Interlock | X-ray tube powers off immediately when back door opens |
| Anti-pinch | Safety light curtain covers entire drawer; stops immediately when obstruction detected |
| Emergency Stop | Front-mounted emergency stop button for immediate power cutoff |
| Reel Size | Parts Size | Quantity | Accuracy | Speed |
|---|---|---|---|---|
| 7" (180mm) | 01005 | 40000 | 99.98% | 9-10s |
| 7" (180mm) | 0201 | 20000 | 99.99% | 8-9s |
| 7" (180mm) | 0402 | 10000 | 99.99% | 7-8s |
| 7" (180mm) | 0603 | 5000 | 99.99% | 7-8s |
| 10" (254mm) | 1206 | 5000 | 99.99% | 7-8s |
| 15" (380mm) | 1206 | 10000 | 99.99% | 7-8s |
All machines connect to a cloud database for data and image upload. The system automatically downloads the latest algorithm updates. Engineers optimize the algorithm using real-world data, continuously improving accuracy and component coverage. We offer connecting the system service on-site or remotely.

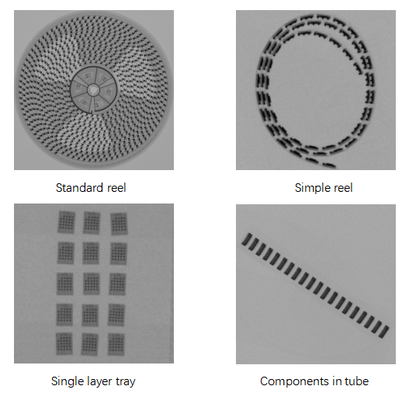

The counting system uses an advanced deep learning algorithm that automatically identifies components without manual binding. It learns component features including aspect ratio, corner angles, internal-external slope, and image deformation to improve accuracy with more usage. We offer permanent free update service.
