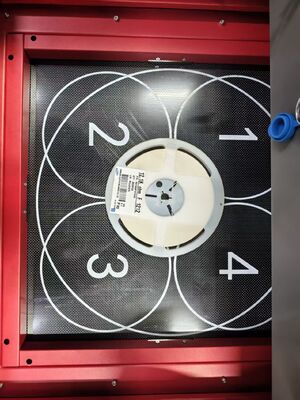

The Automatic SMD X-Ray Reel Counting Machine utilizes advanced AI technology to accurately count components on reels through non-destructive scanning.
| Type | Super definition digital FPD |
|---|---|
| Effective Area | 430mm × 430mm |
| Pixel Size | 139μm |
| Resolution | 3072 × 3072 |
| Type | Closed, microfocus |
|---|---|
| Max Tube Voltage | 80kV |
| Max Tube Current | 700μA |
| Focal Spot Size | 30μm |
| Max Size | 17" (430mm) |
|---|---|
| Max Thickness | 88mm |
| Min Parts Size | 01005 |
| Speed | 7-10s |
| Accuracy | 99.99% |
| Dimensions | 1000mm (L) × 1300mm (W) × 1820mm (H) |
|---|---|
| Weight | 520kg |
| Power Supply | AC110-220V 50/60HZ |
| Max Power | 800W |
| Industrial PC | I7 CPU, 16G RAM, 256G SSD+4T HDD |
| Display | 24" HDMI LCD |
| Radiation Leakage | No leakage |
|---|---|
| Back Door Safety Interlock | X-ray tube powers off immediately when back door opens |
| Anti-pinch | Safety light curtain covers entire drawer; stops immediately when obstruction detected |
| Emergency Stop | Front-mounted emergency stop button for immediate power cutoff |
| Reel Size | Parts Size | Quantity | Accuracy | Speed |
|---|---|---|---|---|
| 7" (180mm) | 01005 | 40000 | 99.98% | 9-10s |
| 7" (180mm) | 0201 | 20000 | 99.99% | 8-9s |
| 7" (180mm) | 0402 | 10000 | 99.99% | 7-8s |
| 7" (180mm) | 0603 | 5000 | 99.99% | 7-8s |
| 10" (254mm) | 1206 | 5000 | 99.99% | 7-8s |
| 15" (380mm) | 1206 | 10000 | 99.99% | 7-8s |

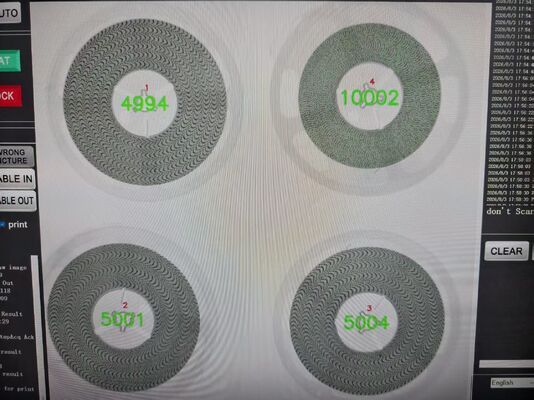

All machines connect to a cloud database for data and image upload. The system automatically downloads the latest algorithm updates. Engineers optimize the algorithm using real-world data, continuously improving accuracy and component coverage. We offer connecting the system service on-site or remotely.
The counting system uses an advanced deep learning algorithm that automatically identifies components without manual binding. It learns component features including aspect ratio, corner angles, internal-external slope, and image deformation to improve accuracy with more usage. We offer permanent free update service.
Although the X-ray counter is very efficient and is not afraid of aluminum foil bags and moisture-proof bags, it is not omnipotent, and not all types of components can be counted. If the component meets the following two conditions at the same time, it can be counted: (1). Components do not overlap. (2). Component arrangement is regular.
