X Ray Counter
>
Accurate SMD X-ray component Counter uses X-ray imaging technology to count the number of components on reels, trays, or in bulk packaging
All Category

X Ray Counter

PCB X Ray Machine

SMD Tower

Automated X Ray Inspection

Electronics X Ray Machine

Solder Paste Storage Cabinet

Hamamatsu X Ray Source

BGA X Ray Machine

Automatic Splicing Machine

SMT X Ray Machine

Hamamatsu Image Intensifier

3D X Ray Inspection

X Ray Image Intensifier
Contact Us
Miss. Grena Guo
sales18@well-man.com
+86 19154950226
Wechat
+86 19154950226
Chat Now

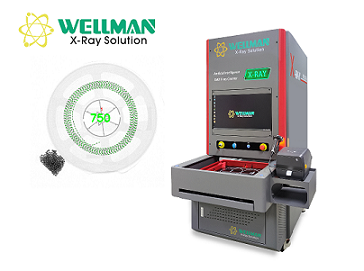

Accurate SMD X-ray component Counter uses X-ray imaging technology to count the number of components on reels, trays, or in bulk packaging

Brand Name: WELLMAN
Model Number: XC01
MOQ: 1
Payment Terms: T/T
Supply Ability: Worldwide supply
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ISO9001,FDA
Max Size:
17" (430mm)
Accuracy:
99.99%
Packaging Details:
Wooden case
Supply Ability:
Worldwide supply
Highlight:

SMD X-ray component counter

,

X-ray imaging component counter

,

X-ray counter for reels

Product Description
Accurate SMD X-ray Component Counter
Utilizes advanced X-ray imaging technology to precisely count electronic components on reels, trays, or in bulk packaging with exceptional accuracy and speed.
Working Principle
X-ray component counter working principle diagram showing internal components and scanning process
Key Advantages
  • 80kV closed type X-ray tube with extended service life
  • High-speed counting: 4x 7" reels or 1x 15" reel in 7-10 seconds
  • Simultaneous auto scanning, code reading, counting, and label printing
  • Free permanent updates for AI deep learning algorithm
  • Seamless integration with MES, ERP, WMS and other management systems
Technical Specifications
Flat Panel Detector
Type Super definition digital FPD
Effective Area 430mm × 430mm
Pixel Size 139μm
Resolution 3072 × 3072
X-ray Source
Type Closed, microfocus
Max Tube Voltage 80kV
Max Tube Current 700μA
Focal Spot Size 30μm
Reel Counting
Max Size 17"
Max Thickness 88mm
Min Parts Size 01005
Speed 7-10s
Accuracy 99.99%
Equipment
Dimensions 1000mm (L) × 1300mm (W) × 1820mm (H)
Weight 520kg
Power Supply AC110-220V 50/60HZ
Max Power 800W
Industrial PC I7 CPU, 16G RAM, 256G SSD+4T HDD
Display 24" HDMI LCD
Safety Features
Radiation Leakage No leakage
Back Door Safety Interlock X-ray tube powers off immediately when back door opens
Anti-pinch Safety light curtain covers entire drawer; stops immediately when obstruction detected
Emergency Stop Front-mounted emergency stop button for immediate power cutoff
Performance Specifications
Reel Size Parts Size Quantity Accuracy Speed
7" (180mm) 01005 40000 99.98% 9-10s
7" (180mm) 0201 20000 99.99% 8-9s
7" (180mm) 0402 10000 99.99% 7-8s
7" (180mm) 0603 5000 99.99% 7-8s
10" (254mm) 1206 5000 99.99% 7-8s
15" (380mm) 1206 10000 99.99% 7-8s
Cloud Integration & System Connectivity
All machines connect to a cloud database for data and image upload. The system automatically downloads the latest algorithm updates. Engineers optimize the algorithm using real-world data, continuously improving accuracy and component coverage. We offer connecting the system service on-site or remotely.
Cloud database integration diagram showing data flow between machines and cloud servers
AI Deep Learning Technology
The counting system uses an advanced deep learning algorithm that automatically identifies components without manual binding. It learns component features including aspect ratio, corner angles, internal-external slope, and image deformation to improve accuracy with more usage. We offer permanent free update service.
AI deep learning algorithm visualization showing component analysis and pattern recognition
