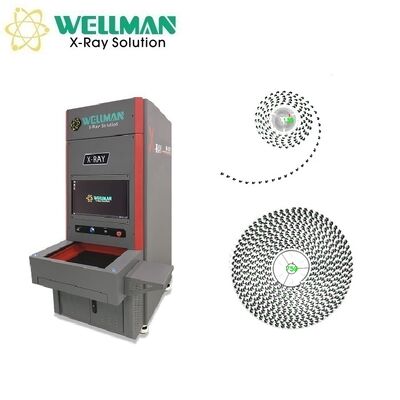

| Brand Name: | WELLMAN |
| Model Number: | XC-01 |
Performance data for various reel sizes. Speed and accuracy improve with ongoing algorithm updates.
| Reel Size | Parts Size | Quantity | Accuracy | Speed |
|---|---|---|---|---|
| 7" (180mm) | 01005 | 40000 | 99.98% | 9-10s |
| 7" (180mm) | 0201 | 20000 | 99.99% | 8-9s |
| 7" (180mm) | 0402 | 10000 | 99.99% | 7-8s |
| 7" (180mm) | 0603 | 5000 | 99.99% | 7-8s |
| 10" (254mm) | 1206 | 5000 | 99.99% | 7-8s |
| 15" (380mm) | 1206 | 10000 | 99.99% | 7-8s |
| Parameter | Specification |
|---|---|
| X-ray Source Type | Integrated, microfocus |
| Max Tube Voltage | 80kV |
| Max Tube Current | 700μA |
| Focal Spot Size | 30μm |
| Flat Panel Detector Type | Super definition digital FPD |
| Effective Area | 430mm * 430mm |
| Pixel Size | 139μm |
| Resolution | 3072 * 3072 |
| Max Reel/Tray Size | 17" (430mm) |
| Max Thickness | 88mm |
| Min Parts Size | 01005 |
| Counting Speed | 7-10s |
| Counting Accuracy | 01005 ≥ 99.98%, 0201 & above ≥ 99.99% |
| Equipment Dimensions | 1000mm (L) * 1300mm (W) * 1820mm (H) |
| Weight | 580kg |
| Power Supply | AC110-220V 50/60HZ |
| Max Power | 800W |
| Industrial PC | I7 CPU, 16G RAM, 256G SSD + 4T HDD |
| Displayer | 24" HDMI LCD |
| Function | Description |
|---|---|
| Auto Code Scanning | Barcode and QR code scanning |
| Label Printing | Automatic label printing when reel is removed |
| Counting Record | Inquiry by time range and work order number |
| Management System Connection | MES, ERP, WMS, etc. |
| Mode Switching | No manual switching between single/multi reel modes |
| Work Order Number | Support for work order number recording |
| Feature | Description |
|---|---|
| Radiation Leakage | No leakage, meets international standard: ≤1μSv/h |
| Back Door Safety Interlock | X-ray tube powers off immediately when back door opens |
| Anti-pinch Protection | Safety light curtain stops drawer immediately upon obstruction |
| Emergency Stop | Front-mounted emergency stop button for immediate power off |
Our counting software utilizes a powerful artificial intelligence deep learning algorithm that automatically identifies components and applies appropriate algorithms without manual binding. The AI system learns from counted component data including:
As counting operations increase, the algorithm becomes increasingly accurate. The system easily handles similar components or larger trays with improved performance over time.
Every Wellman X-ray counter connects to our cloud database. Machine data and images are uploaded to the cloud, and each unit automatically downloads the latest database updates. Our engineers continuously optimize algorithms based on collected data and regularly update the cloud database.
Over time, counting accuracy approaches 100% with expanding component type coverage. When encountering new components, the system can directly access stored data from our database, delivering higher efficiency, accuracy, and coverage.
