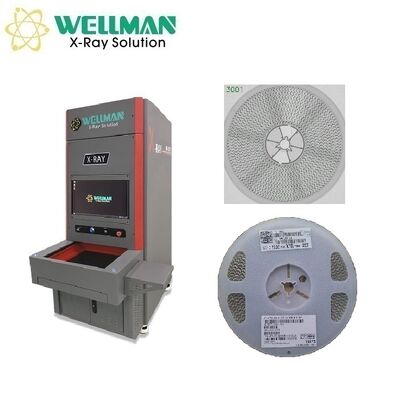

| Brand Name: | WELLMAN |
| Model Number: | XC-01 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| X-ray Source Specifications | ||
|---|---|---|
| Type | Integrated, microfocus | |
| Max Tube Voltage | 80kV | |
| Max Tube Current | 700μA | |
| Focal Spot Size | 30μm | |
| Flat Panel Detector | ||
| Type | Super definition digital FPD | |
| Effective Area | 430mm × 430mm | |
| Pixel Size | 139μm | |
| Resolution | 3072 × 3072 | |
| Reel/Tray Counting | ||
| Max Size | 17" (430mm) | |
| Max Thickness | 88mm | |
| Min Parts Size | 01005 | |
| Speed | 7-10s | |
| Accuracy | 01005 ≥ 99.98%, 0201 & above ≥ 99.99% | |
| Equipment Specifications | ||
| Dimensions | 1000mm (L) × 1300mm (W) × 1820mm (H) | |
| Weight | 580kg | |
| Power Supply | AC110-220V 50/60HZ | |
| Max Power | 800W | |
| Industrial PC | I7 CPU, 16G RAM, 256G SSD + 4T HDD | |
| Displayer | 24" HDMI LCD | |
| Additional Functions | ||
| Auto Code Scanning | Barcode and QR code | |
| Label Printing | Print corresponding label when user takes out a reel | |
| Counting Record | Inquiry by time range, work order number | |
| Management System Connection | MES, ERP, WMS etc. | |
| Mode Switching | No need to switch single/multi reel mode | |
| Work Order No. | Support work order number recording | |
| Safety Features | ||
| Radiation Leakage | No leakage, international standard: ≤1μSv/h | |
| Back Door Safety Interlock | X-ray tube powers off immediately when back door opens | |
| Anti-pinch | Safety light curtain covers drawer, stops immediately when obstructed | |
| Emergency Stop | Front operation position emergency stop button | |
| Reel Size | Parts Size | Quantity | Accuracy | Speed |
|---|---|---|---|---|
| 7" (180mm) | 01005 | 40000 | 99.98% | 9-10s |
| 7" (180mm) | 0201 | 20000 | 99.99% | 8-9s |
| 7" (180mm) | 0402 | 10000 | 99.99% | 7-8s |
| 7" (180mm) | 0603 | 5000 | 99.99% | 7-8s |
| 10" (254mm) | 1206 | 5000 | 99.99% | 7-8s |
| 15" (380mm) | 1206 | 10000 | 99.99% | 7-8s |
